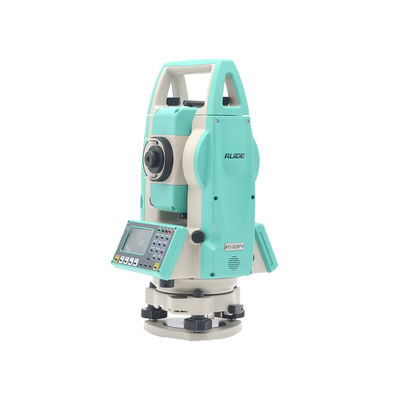

battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine
  • name
  • name
  • name
  • name
  • name
  • name

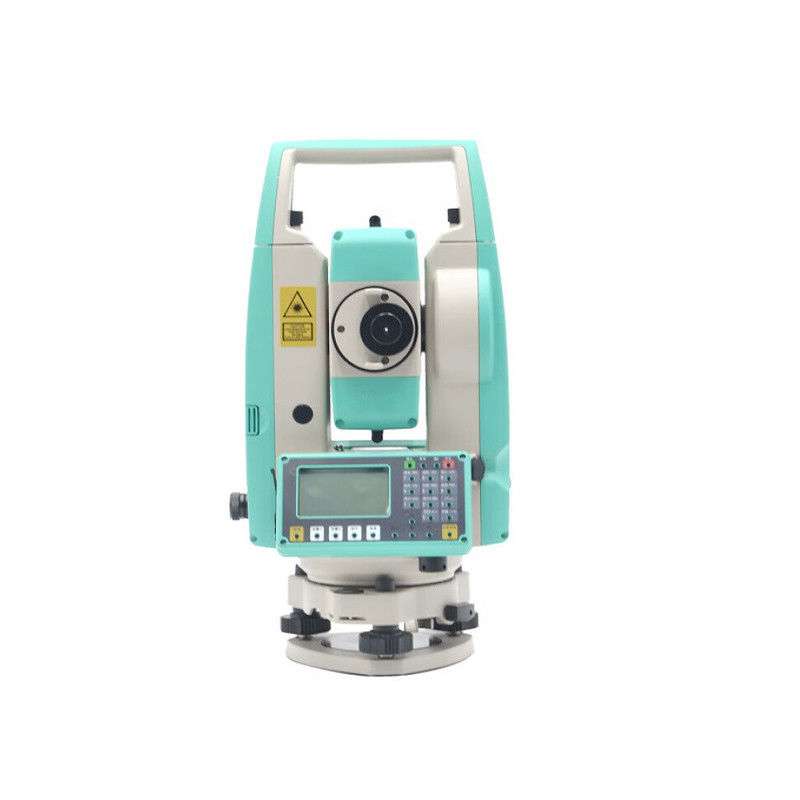

battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine

Brand Name: Ruide
Model Number: RTS-822R6
MOQ: 1 set
Price: ＄1,550.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station
Customized Support:
OEM, ODM, OBM
Brand Name:
Ruide
Model:
RTS-822R6
Power:
Lithium Battery
Magnification:
30X
Reflectorless:
800m
Single Prism:
5000m
Display:
LCD Display
Accuracy: Non Prism:
3+2ppm
Accuracy:
2"
Angle Measurement:
Absolute Encoding Angle Measurement
Operating Time:
15 Hour
Waterproof And Dustproof:
IP55
Highlight:

electronic robotic totalstation

,

Optical robotic totalstation

,

Optical electronic total station machine

Product Description

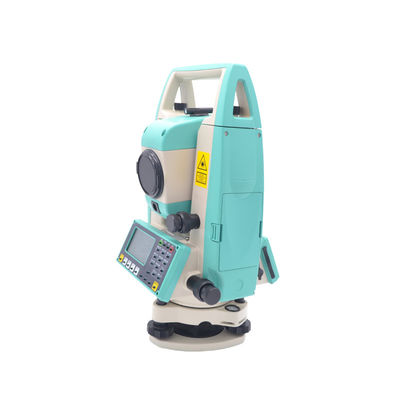

Ruide RTS-822R6 Optical Survey Instrument Total Station Reflectorless Total Station





Product Details
RTS-822R6
Telescope
Length 152mm
Objective Lens Diameter Telescope:45mm Distance Meter:47mm
Magnification 30X
Image Erect
Field of View 1°30′
Resolving Power 3″
Mini.Focus 1.5m
DISTANCE MEASUREMENT
three Prism 5000m
reflector 1000m
Non-Prism 600m
Accuracy -Prism ±(2+2×10-6D)mm
reflector ±(3+2×10-6D)mm
Non-Prism ±(3+2×10-6D)mm
Measuring Time Single precision test was less than 1.2s and continuous 0.35s ,Tracking:0.2s
Meteorologic Correction,Atmospheric shading and earth curvature correction,Correction of reflection prism constant,Temperature and pressure correction Auto Sensing
Prism Constant Manual Input
ANGLE MEASUREMENT
Method Absolute Encoding
Detecting System H:2sides,V:2sides
Min.Reading 1″
Accuracy 2″
Diameter of Circle 79mm
Vertical Angle 0° Zenith 0°/Horizontal:0°
Unit 360°/400gon/6400mil
DISPLAY
No.of Display 2 sides
TILT CORRECTION
Sensor Dual Axis
Method Liquid Electric
Range 3′
Setting Unit 1″
LEVEL SENSITIVITY
Plate Level 30″/2mm
Circular Level 8′/2mm
GENERAL
USB flash disk Yes
  yes
Weight&Dimension 5.4kg,206mm×195mm×353mm
Working Temperature -20℃~+50℃
Battery Type Rechargeable Li-on Battery
Battery Voltage DC 7.4V
Working Time 8h
water proof class IP55

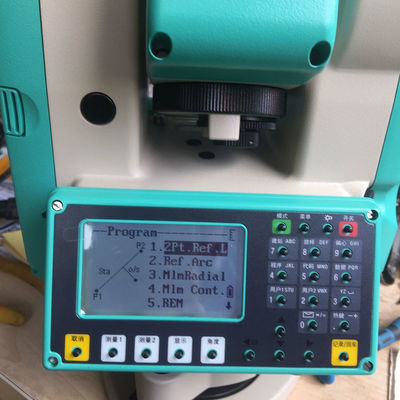

Clear and intuitive interface
Intelligent operating system, 3.0-inch high-definition true colour display. Prism-free ranging up to 1000 metres, reliable precision guaranteed accuracy: earth (3mm + 2x10-D); using the international advanced point emission, surface receiving laser ranging optical path, high efficiency, high precision.





One-key measurement shortcut
Confirm the target after one key measurement, fast and convenient, as you wish.





Data transmission and storage
Large-capacity SD card to transmit data, USB communication is convenient and fast.
Users can choose freely.





battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 0



Performance Characteristics
Multi-path data transmission RTS-862 series total station can have a variety of data transmission paths, through the U disk, SD card, USB communication and computer and other external devices connected. Can also use the latest Bluetooth technology to achieve wireless communication with PDA, handbook and other devices.




One Touch Measurement
When you use RTS-862 series total station to measure, you don't need to take your eyes off the telescope, and you can finish the measurement work by gently case. The one-button operation measurement has less impact on the measurement and ensures the accuracy of the measurement work.







Why Choose Us

battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 1
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 2



Certifications
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 3
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 4

Company Profile
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 5


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 6

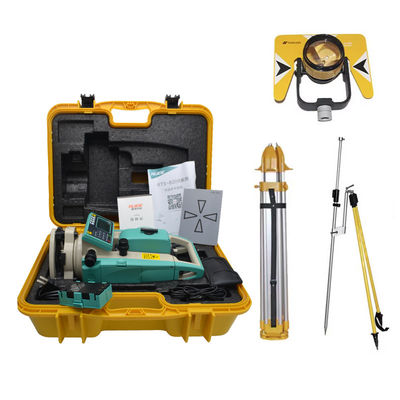

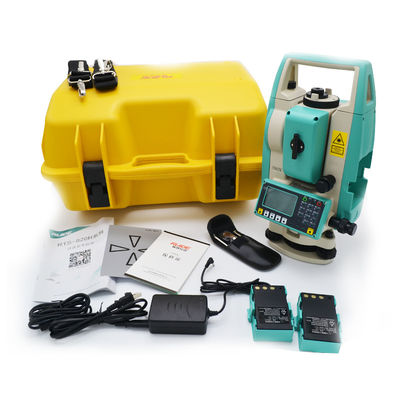

Packing & Delivery
battery powered Electronic Optical Robotic Totalstation Survey Instrument Machine 7
