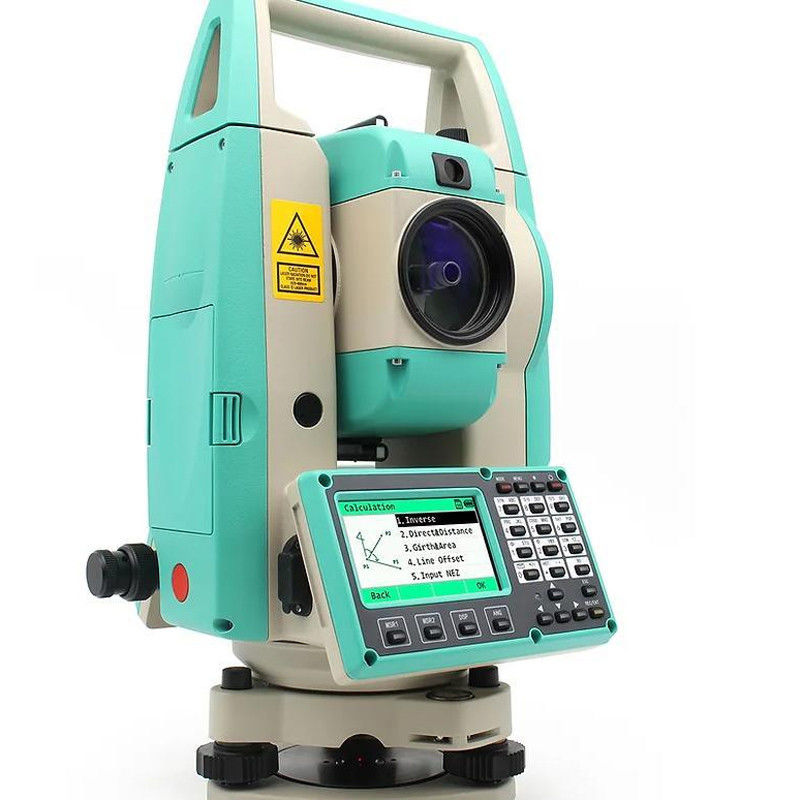

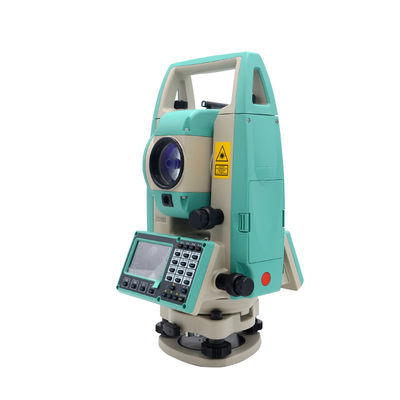

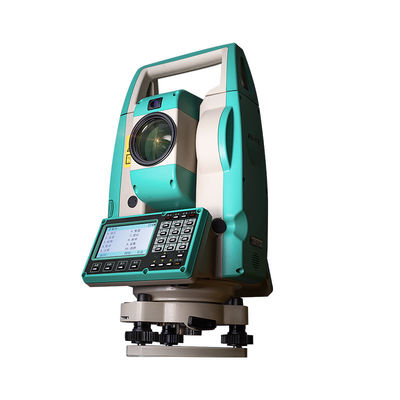

Electronic Theodolite Robotic Total Station Survey Machine Lightweight

Brand Name: Ruide
Model Number: RTS-822R10M
MOQ: 1 set
Price: ＄1700.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station
Customized Support:
OEM, ODM, OBM
Brand Name:
Ruide
Model:
RTS-822R10M
Power:
Lithium Battery
Magnification:
30X
Reflectorless:
1000m
Single Prism:
5000m
Display:
LCD Display
Accuracy: Non Prism:
3+2ppm
Accuracy:
2"
Angle Measurement:
Absolute Encoding Angle Measurement
Operating Time:
15 Hour
Waterproof And Dustproof:
IP55
Highlight:

Electronic Robotic Total Station

,

Robotic Total Station Theodolite

,

lightweight total station survey machine

Product Description

Ruide RTS-822R10M--RCS Total Station Electronic Theodolite Surveying Instruments with High Accuracy 2''





Product Description
All high-frequency short-scale multiplexing technology, improve the system signal-to-noise ratio, only a small amount of data can be measured to improve the measurement speed.


Intelligent measuring tape dense distribution technology, greatly improving the system error and self-verification ability to eliminate abnormal data.
New high-performance circuit design, gain system, smaller signals we can also see.


High-resolution fully digital waveform technology, smaller signals we can not only see but also process.


Fixed reference light path makes the data more stable, longer receiving distance makes it possible to add optical attenuation components at the receiving end to reduce optical interference signals and improve the accuracy of the data.

Electronic Theodolite Robotic Total Station Survey Machine Lightweight 0Electronic Theodolite Robotic Total Station Survey Machine Lightweight 1Electronic Theodolite Robotic Total Station Survey Machine Lightweight 2Electronic Theodolite Robotic Total Station Survey Machine Lightweight 3Electronic Theodolite Robotic Total Station Survey Machine Lightweight 4

Model
RTS-822R15M / RCS
TELESCOPE
Length
154mm
Diameter
Telescope:45mm EDM: 50mm
Magnification
30X
Erect
Field of View
1°30’
Resolving Power
3"
Min. Focus
1.5m
DISTANCE
Single Prism Range
5000m
Accuracy
±(2mm+2ppm*D) m.s.e
Non-prism
1500m
Accuracy
±(3mm+2ppm*D) m.s.e
Measuring Time
Fine: 0.3s; Normal: 0.2s
Meteorologic Correction
ATMO Sense Auto Correction
Prism Constant
Manuual
Quick Meas Button
Yes
ANGLE MEASUREMENT
Method
Absolute Encoding
Detecting System
H: Dual; V: Dual
Min. Reading
1”/5”/10“
Accuracy
2"
Diamater of Circle
79mm
Vertical Angle 0°
Zenith 0°/ Horizontal: 0°
Unit
360°/400gon/6400mil
DISPLAY
Display Unit
Graphic, 640*320 color touch LCD
No. of Unit
2 sides
Keyboard
Alphanumeric
UltraPlumb
Working Range
0.6-2.0m
Minimum Reading
1mm
Accuracy
±3mm
TILT CORRECTION
Tilt Sensor
Dual Axis
Method
Liquid Electric
Range
6’
Resolution
1″
LEVEL SENSITIVITY
Plate Level
30″/2mm
Circular Level
8'/2mm
DATA STORAGE & INTERFACE
Internal Memory
16,000 points
Data Interface
USB 2.0
Wireless
Bluetooth 2.1 *1
GENERAL
Guide Light
Yes
Q-Meas Button
Yes
Weight
5.4kg
Dimension
353 (H) * 206 (L) * 200 (W) mm
Working Temperature
-20℃~+50℃
Batter Type
Rechargeable Li-on, 7.4V, 3000mAh
Water & Dust Proof
IP65
Duration
12h


Why Choose Us

Electronic Theodolite Robotic Total Station Survey Machine Lightweight 5
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 6



Certifications
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 7
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 8

Company Profile
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 9


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 10

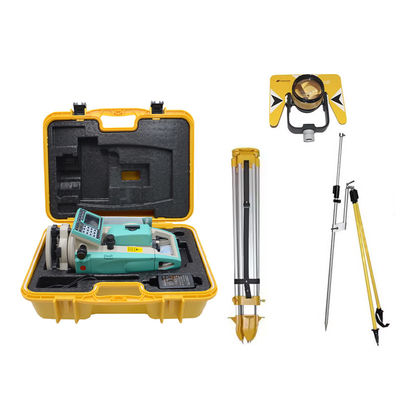

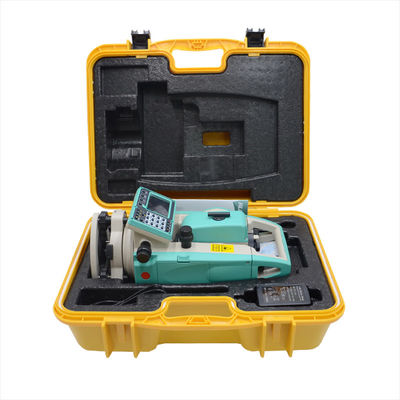

Packing & Delivery
Electronic Theodolite Robotic Total Station Survey Machine Lightweight 11
