Kolida 472R10L Wireless Reflectorless Staton Topographic Survey Instruments Total Station

Brand Name:	Kolida
Model Number:	472R10L
MOQ:	1 set
Price:	＄2,800.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station

Customized Support:

OEM, ODM, OBM

Brand Name:

Kolida

Model:

472R10L

Magnification:

Reflectorless:

1000m

Single Prism:

5000m

Display:

LCD Display

Accuracy: Non Prism:

2+2ppm

Accuracy:

Angle Measurement:

Absolute Encoding Angle Measurement

Operating Time:

7 Hour

Waterproof And Dustproof:

Highlight:

automatic total station Survey Instruments

Topographic automatic total station

Topographic total station tools

Product Description

Kolida 472R10L Wireless Reflectorless Staton Topographic Survey Instruments Total Station

Specification

Models and technical parameters		472LL	472R4L	472R6L	472R8L	472R10L
Distance measurement	With prism	5000m
	Without prism		400m	600m	800m	1000m
	Measurement Time	Fine:0.3s, Tracking: 0.1s
	Accuracy	2mm+2ppm(with prism), 3mm+2ppm(without prism)
Angle measurement	Angle measurement mode	Absolute angle encoder system
	Minimum reading	0.1" /1" /5" Optional
	Accuracy	2"
Telescope	Image	Erect
	Magnification	30X
	Objective aperture	Telescope: 45mm, Distance Meter: 50mm
	Field of view	1 30'
	Minimum of focusing distance	1.0m
	Resolution	3"
Compensation	System	Dual-Axis Liquid-Electric Sensor Compensation
	Range	6'
	Accuracy	1'
Level	Plate level	30"/2mm
	Circular level	8'/2mm
Laser Plummet	Accuracy	1.5mm (in 1.5m)
	Laser spot Diameter	2.5mm (in 1.5m)
Display	Type	2.8" LCD Color Screen 240*320dpi
Power	Battery	Rechargeable Li-ion battery
	Voltage	DC 7.4V
	Continue Working Time	7 hours
Weight		5.2kg
Size		160150335mm

Windows System Computerised Operation

To achieve the whole station computerised colour touch screen professional operation converted to graphical operation.

Overall increase in mainframe computing speed

Increased computing speed,Absolute encoding, no initialisation on power-up,Bi-axial liquid photoelectric electronic compensation,

Convenient data communication.

Extensive Measurement Programmes

Coordinate measurement, overhang measurement, angle measurement...

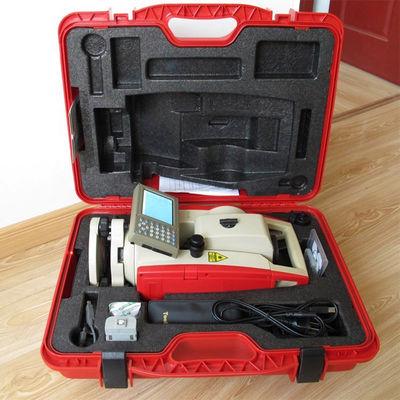

Easy to open the box with all the right features

Kolida 472R10L Wireless Reflectorless Staton Topographic Survey Instruments Total Station 0

Kolida 472R10L Wireless Reflectorless Staton Topographic Survey Instruments Total Station 2

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
