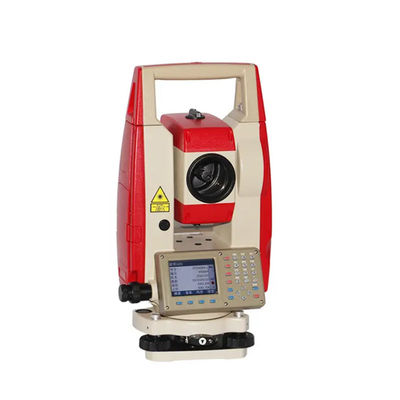

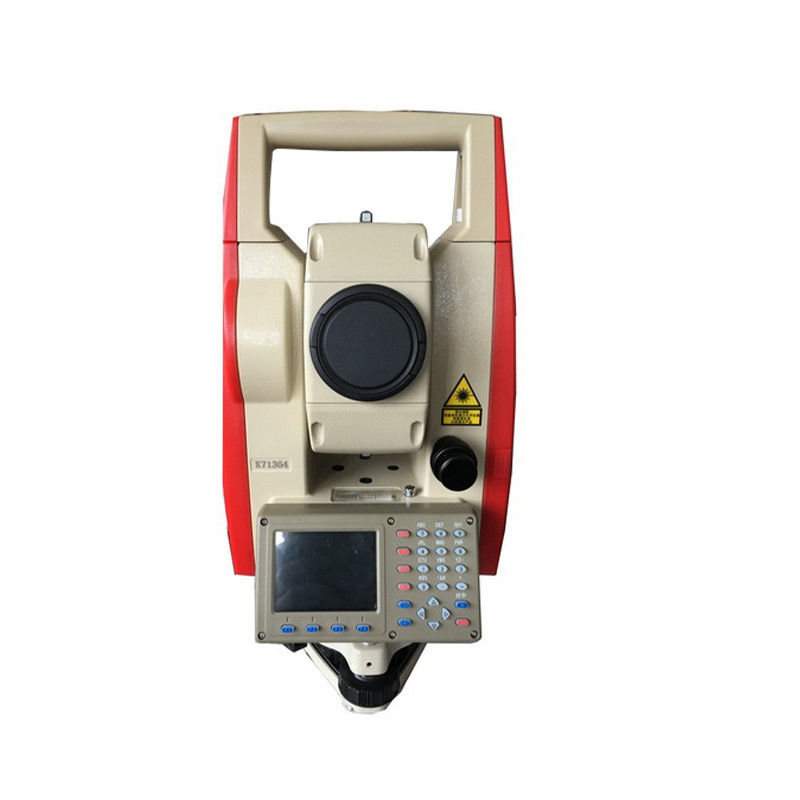

Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V
  • name
  • name
  • name
  • name
  • name
  • name

Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V

Brand Name: Kolida
Model Number: KTS-462R4L
MOQ: 1 set
Price: ＄1,400.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station
Customized Support:
OEM, ODM, OBM
Brand Name:
Kolida
Model:
KTS-462R4L
Magnification:
30X
Reflectorless:
400m
Single Prism:
5000m
Display:
LCD Display
Accuracy: Non Prism:
2+2ppm
Accuracy:
2"
Angle Measurement:
Absolute Encoding Angle Measurement
Operating Time:
7 Hour
Waterproof And Dustproof:
IP55
Highlight:

Custom motorized total station

,

400m Prismless motorized total station

,

7.4V optical total station

Product Description

Kolida Low Price Total Station KTS-462R4L 400m Prismless



Specification



Models and technical parameters 462LL 462R4L 462R6L 462R8L 462R10L
Distance measurement With prism 5000m
Without prism   400m 600m 800m 1000m
Measurement Time Fine:0.3s, Tracking: 0.1s
Accuracy 2mm+2ppm(with prism), 3mm+2ppm(without prism)
Angle measurement Angle measurement mode Absolute angle encoder system
Minimum reading 0.1" /1" /5" Optional
Accuracy 2"
Telescope Image Erect
Magnification 30X
Objective aperture Telescope: 45mm, Distance Meter: 50mm
Field of view 1 30'
Minimum of focusing distance 1.0m
Resolution 3"
Compensation System Dual-Axis Liquid-Electric Sensor Compensation
Range 6'
Accuracy 1'
Level Plate level 30"/2mm
  Circular level 8'/2mm
Laser Plummet Accuracy 1.5mm (in 1.5m)
Laser spot Diameter 2.5mm (in 1.5m)

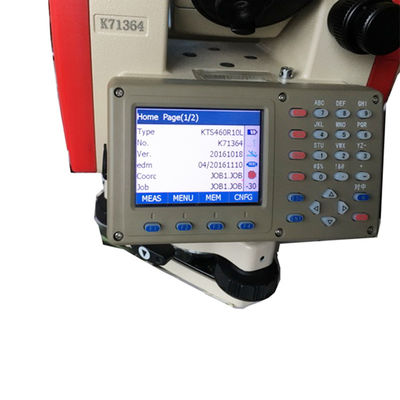

Display Type 2.8" LCD Color Screen 240*320dpi
Power Battery Rechargeable Li-ion battery
Voltage DC 7.4V
Continue Working Time 25hours
Weight 5.2kg
Size 160*150*335mm
Certifications

Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V 0
Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V 1

Company Profile

Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V 2


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V 3

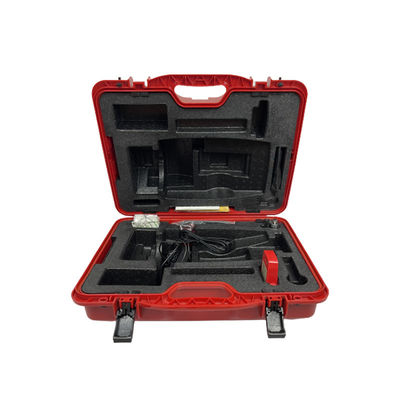

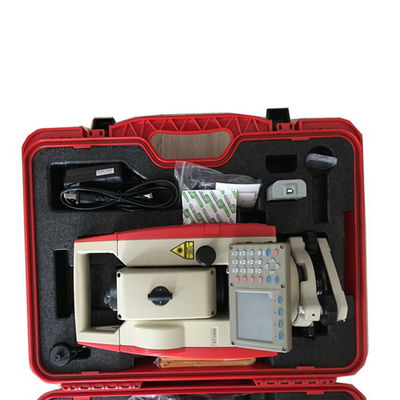

Packing & Delivery
Custom Kolida Optical Motorized Total Station 400m Prismless 7.4V 4
