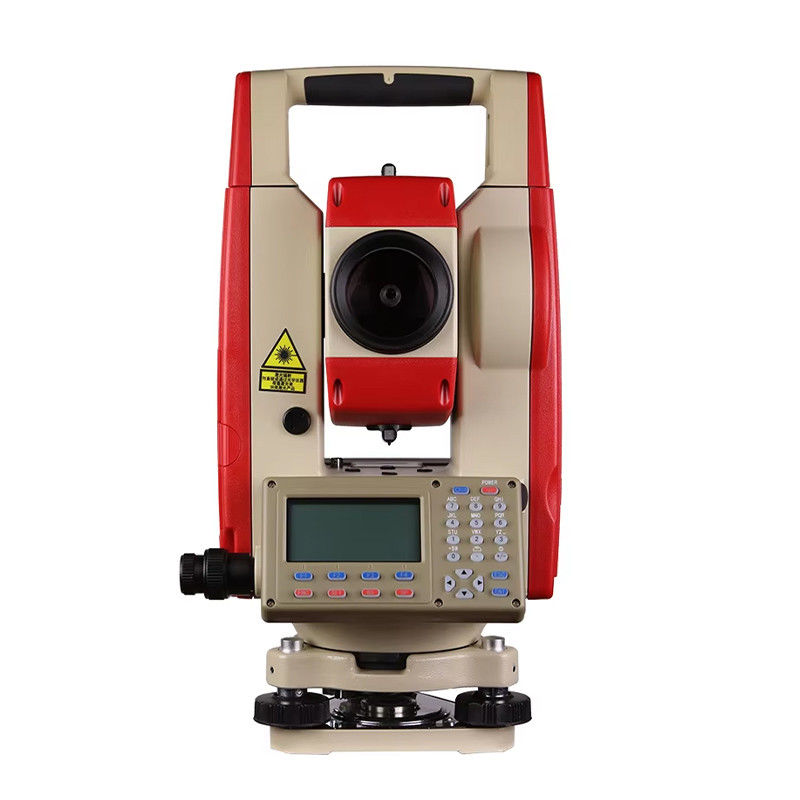

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display
  • name
  • name
  • name
  • name
  • name
  • name
  • name

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display

Brand Name: Kolida
Model Number: KTS-442R6
MOQ: 1 set
Price: ＄1,350.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station
Customized Support:
OEM, ODM, OBM
Brand Name:
Kolida
Model:
KTS-442R6
Magnification:
30X
Reflectorless:
600m
Single Prism:
5000m
Display:
LCD Display
Accuracy: Non Prism:
2+2ppm
Accuracy:
2"
Material:
Aluminum Alloy
Operating Time:
10 Hour
Package:
Carton Box
Application:
Surveying
Waterproof And Dustproof:
IP55
Highlight:

OBM Robotic Total Station

,

LCD Display Robotic Total Station

,

OBM total station device

Product Description

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display





Specification





Models and technical parameters 462R4L 462R6L 462R8L 462R10L
Distance measurement With prism 5000m
Without prism 400m 600m 800m 1000m
Measurement Time Fine:0.3s, Tracking: 0.1s
Accuracy 2mm+2ppm(with prism), 3mm+2ppm(without prism)
Angle measurement Angle measurement mode Absolute angle encoder system
Minimum reading 0.1" /1" /5" Optional
Accuracy 2"
Telescope Image Erect
Magnification 30X
Objective aperture Telescope: 45mm, Distance Meter: 50mm
Field of view 1°30'
Minimum of focusing distance 1.0m
Resolution 3"
Compensation System Dual-Axis Liquid-Electric Sensor Compensation
Range ±6'
Accuracy 1'
Level Plate level 30"/2mm
  Circular level 8'/2mm
Laser Plummet Accuracy 1.5mm (in 1.5m)
Laser spot Diameter 2.5mm (in 1.5m)
Display Type 2.8" LCD Color Screen 240*320dpi
Power Battery Rechargeable Li-ion battery
Voltage DC 7.4V
Continue Working Time 25hours
Weight 5.2kg
Size 160*150*335mm

 OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 0OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 1

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 2OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 3



Certifications

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 4
OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 5

Company Profile

OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 6


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 7

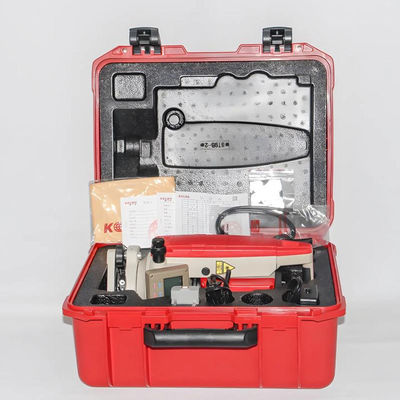

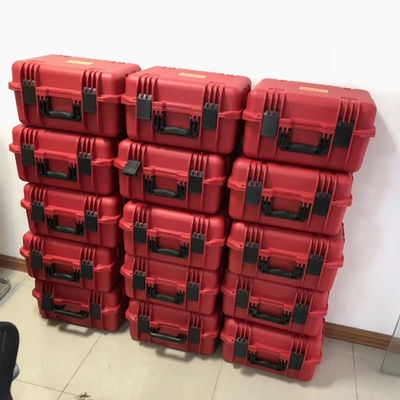

Packing & Delivery
OBM Kolida Robotic Total Station Device 600m Reflectorless LCD Display 8
