STONEX R2C Automated Robotic Total Station Measuring Instrument

Brand Name:	Stonex
Model Number:	R2C
MOQ:	1 set
Price:	＄1,600.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station

Customized Support:

OEM, ODM, OBM

Brand Name:

Stonex

Model:

Stonex R2C Total Station

Magnification:

30X

Reflectorless:

1000m

Single Prism:

5000m

Display:

LCD Display

Accuracy: Non Prism:

2+2ppm

Accuracy:

Angle Measurement:

Absolute Encoding Angle Measurement

Operating Time:

Angle Measurement Time>24 Hours

Waterproof And Dustproof:

IP54

Highlight:

STONEX R2C Robotic Total Station

Robotic Total Station Instrument

STONEX automated total station

Product Description

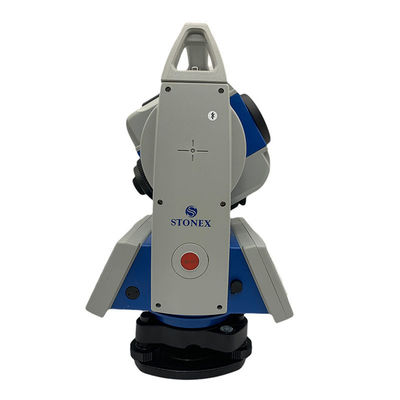

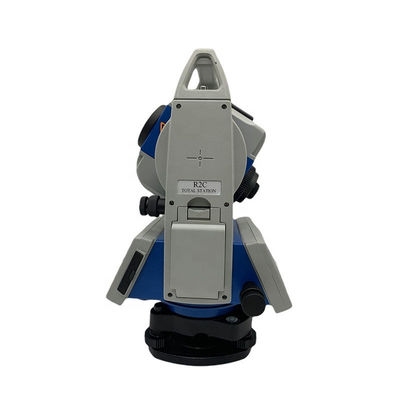

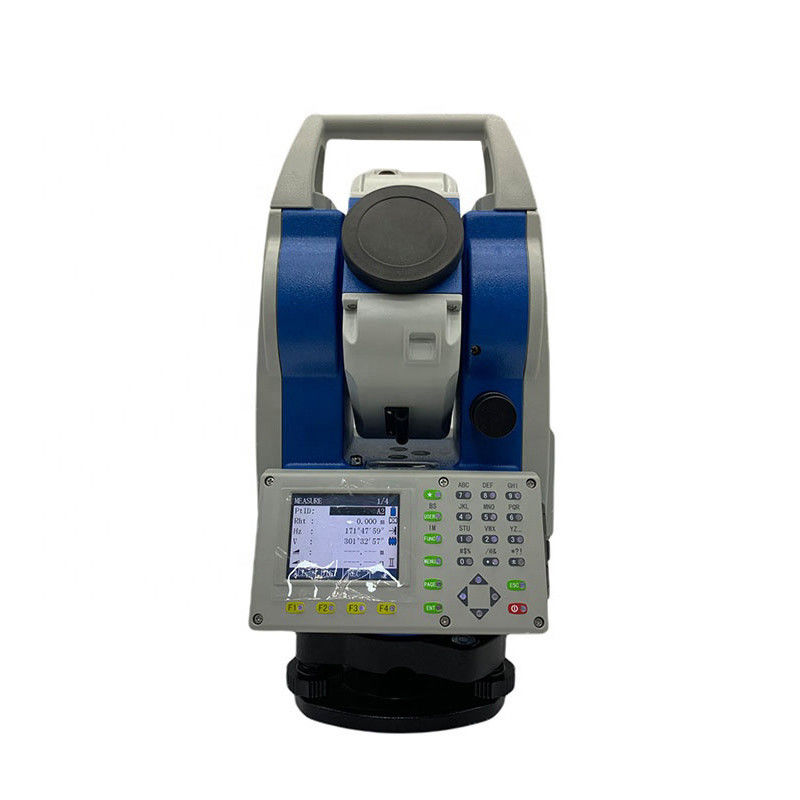

STONEX R2C Automated Robotic Total Station Measuring Instrument

Product Description

Surveying instrument 2'' accuracy total station color screen R2C total station stonex

* Long measuring distance (800 meters without prism)
Using digital phase laser ranging technology, it can achieve high-precision measurement of long-distance targets in prism-free mode, ranging up to 1000 meters; single prism 5000 meters.

* Fast measure speed
Equipped with a new fast digital ranging lens and applying a new ranging technology, it can achieve a single precise measurement of 0.8' and a tracking of 0.3', effectively ensuring the measurement efficiency.

*One-click measurement
When the instrument is measuring, the eye does not need to leave the telescope, and the measurement can be completed with one key. One-key measurement has little impact on measurement operations and can ensure the accuracy of measurement work.

*Dual axis compensation
The fully automatic dual-axis compensator, combined with the visual display of the electronic bubbles, can achieve precise leveling and ensure the accuracy of the horizontal position.

STONEX R2C Automated Robotic Total Station Measuring Instrument 0

Specification

Model	R2C
Telescope	Mirror tube length	156mm
	imaging	Positive
	Effective diameter of objective lens(EDM)	45mm
	Magnification	30X
	field	1°30′
	Discrimination (JIS)	3.5″
	Shortest range of visibility	1.0m
Range finder	Ranging light source	(visible lase)650~690nm
	Spot diameter	12mm/50mm ellipse
	Laser grade	Class3
	Measuring range(good weather condition)	Non-prism	600m
		Reflector RP60	1000m
		Mini prism	1200m
		Single prism	5000m
	Precision of distance measurement	Prism	±(2+2×10-6·D)mm
		Reflector,Non-prism	±(3+2×10-6·D)mm
	Measurement time	1.0s/0.3s(precision / tracking); initial:2.5s
	Minimum reading of distance measurement	Precision measurement mode:1mm
		Tracking measurement mode:10mm
	Range of temperature setting	-40ºC~+60ºC
	temperature range	1ºC(automatic correction)
	Atmospheric correction	500hPa-1500 hPa
	atmospheric pressure	1hPa(automatic correction)
	Prism constant correction	-99.9mm ~ +99.9mm
Long level bubble	Tube type bubble precision	30″/2mm
	Circular bubble precision	8′/2mm
	Graphical electronic level	30″/2mm;range:3′;Accurancy:1″
Laser counter point device	Light spot size / energy	Adjustable
	Laser class	Class2/IEC60825-1
	wavelength	635nm
	accuracy	±0.8mm/1.5m
Angle measurement	Reading system	Absolute coding system
	Minimum reading	1″/5″
	Precision	2''
	Display unit	360°/400gon/6400mil
Midpoint of optical pair(selection)	accuracy	±0.8mm/1.5m
	Imaging	Positive
	Magnification	3X
	field	4°
Compensator	Compensator method	Dual axis compensation
	Range of compensation	±3′

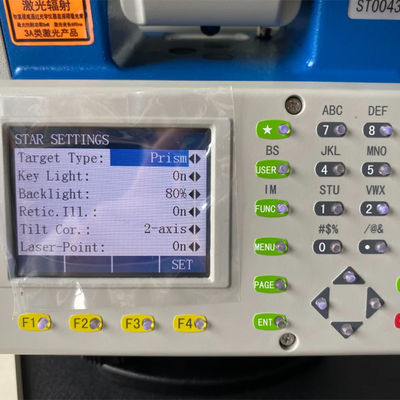

Display	type	LCD display on both sides
		(8 lines and 15 columns of English )
	lighting	LCD backlight
	Screen resolution	240*128
Power Supply	Battery	4000mAh lithium battery
	working voltage	7.4V
	Working time	>24 hours
	Charger	FDJ6-Li
Communication and physical parameters	Memory point	Host RAM with 120000 points
		Hot plugged SD card
	Host weight (with battery)	6KG
	volume	184X220X360MM(WXDXH)
	temperature range	-20ºC~ +50ºC
	I/O upload / download	Having the functions of uploading and downloading
		dataRS232C/USB/SD card(Blue tooth customizable)
	Waterproof grade	IP54(IEC60529)

Note: good weather conditions (no fog, visibility 30Km);

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike. StoneX 实习 2023

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

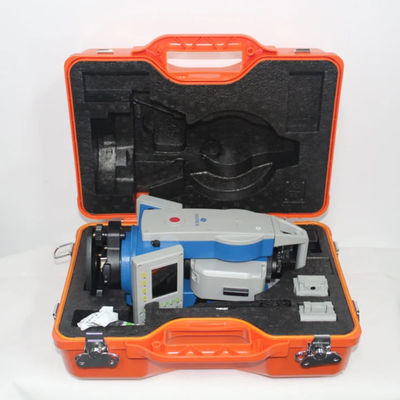

Packing & Delivery
