Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement

Brand Name: SOUTH
Model Number: SDE-28S+
MOQ: 1 piece
Price: $4200,00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Product Name:
Echo Sounder South SDE-28S+
Frequency:
200KHz
Speed Range:
1300 - 1700m/s
Measuring Ability:
0.3 - 300 M
Warranty:
1 Year
Place Of Origin:
China
Accuracy:
1X1X1 Cm
Drat:
0 - 9.9 M
Supply Ability:
1 ~ 30 day
Highlight:

Boat hand held echo sounder

,

Depth hand held echo sounder

,

Boat echo sounder for fishing

Product Description
Ultrasonic Underwater Measurement Depth Echo Sounder South SDE-28S+ For Underwater Mapping

Product Description
SDE-28S

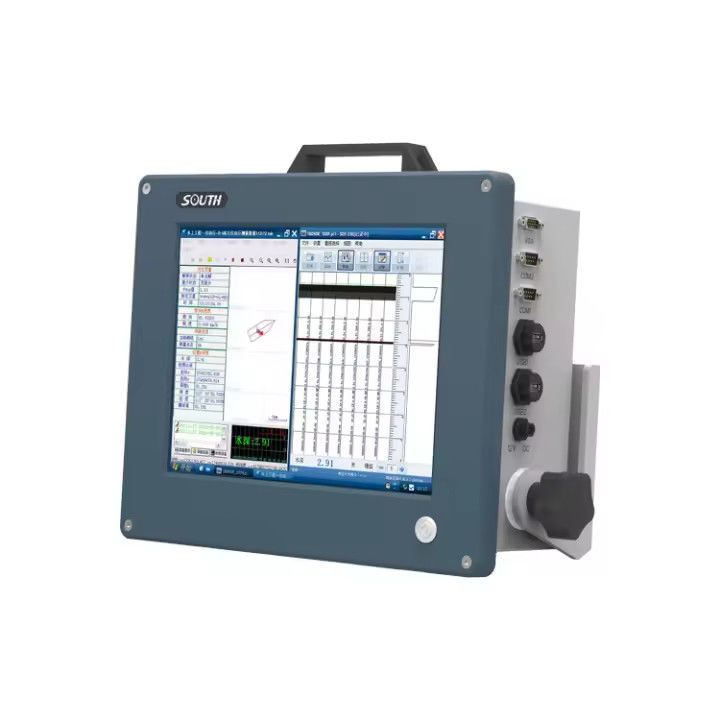

SOUTH SDE-28S+ echo sounder is a kind of industrial control and digital echo sounder which is integrated with the 12.1-inch TFT-LCD screen, industrial control unit, echo sounding unit, data processor, internal memory unit and kinds of interfaces and I/O devices. The special design makes it dust-proof, waterproof, shockproof. It collects depth measurement, graphical navigation, positioning data, water depth data acquisition together. All these features make the instrument strong compatibility, stable performance and reliable accuracy.


·Real-time vivid display of graphic and data, easy approach to underwater waves
·Integrated sound velocity calculation for more accurate results
·Smart alarm for shallow water and "No echo" tracking to secure hydrographic operations
·Real-time display of the water depth value tracking lines, easy to be compared with underwater waves

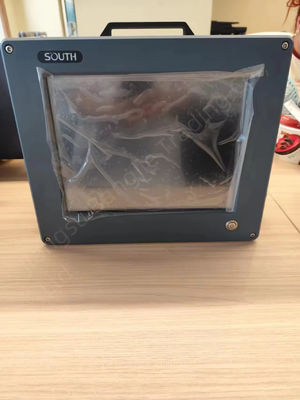

Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 0
Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 1



Specifications
Depth Resolution
±1cm±0.1 D (0.1% of depth value)
Accuracy
±1cm±0.1 D (0.1% of depth value)
Ping Rate
14Hz, Maximum 30Hz
Sound Velocity
1300-1700m/s, resolution is 1m/s
New software kernel, faster processing and more stable
·Professional Engineering map sheet and data management, wizard-style parameter setting
·High compatibility, flexible to import graphs and data, connectible to all GPS devices and echo sounders
·Modular designed, meets diverse needs of hydrographic engineering projects
Measurements Frequency 200 kHz
Beam Angle 7
Depth Resolution 0.1ft/0.01m
Accuracy ±1cm±0.1 D (0.1% of depth value)
Ping Rate 14Hz, Maximum 30Hz
Sound Velocity 1300-1700m/s, resolution is 1m/s
Depth Range 0.3-300m/900ft Draft 0-9.9m
Gain Control AGC and TVG, depth and gain, a double door tracking
Output data format SOUTH, SDH-13D, DES025, INN455, ODOM etc
Physical Environmental -30 ~+60 non-condensing
Output Power Up to 300 watts
Power Supply 9-15V DC, less than 25w, 110~265V AC (optional),
Dimension 35cm 29cm 14cm Weight 7.5kg Hardware part
Embedded system index CPU frequency 1.6GHz Internal memory 2G Memory capacity 8G high-speed CF card (supports extended storage)
I/O interface 2 USB 2 RS232 1 VGA interface
Display Panel Layout 12.1-inch color LCD Touch screen
Embedded windows XP OS Power ON/OFF
Interface protection Separate Panel Overlay for Keyboard Mouse




Certifications

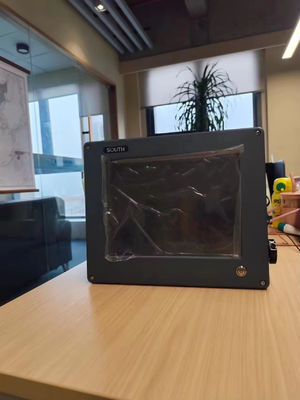

Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 2
Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 3

Company Profile
Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 4


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 5

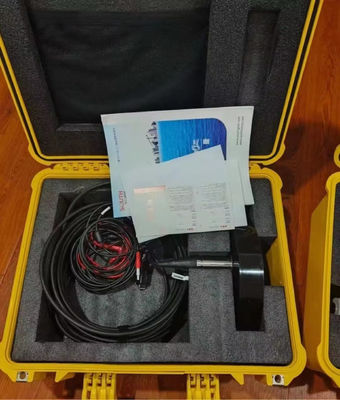

Packing & Delivery
Boat Ultrasonic Depth Hand Held Echo Sounder For Fishing Underwater Measurement 6
