Automatic Level

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Brand Name:	FOIF
Model Number:	EL03
MOQ:	1 set
Price:	＄1,800.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

High Precision Electronic Level

Customized Support:

OEM, ODM, OBM

Brand Name:

Stonex EL03 Level

Model:

Magnification:

Compensation Range:

Compensating Error:

Display:

LCD Display

Shortest Sighting Distance:

Time:

Usb Data Transfer:

Support

Operating Time:

>12 Hours

Waterproof And Dustproof:

Highlight:

FOIF EL03 auto level construction

FOIF auto level construction

FOIF EL03 auto level survey instrument

Product Description

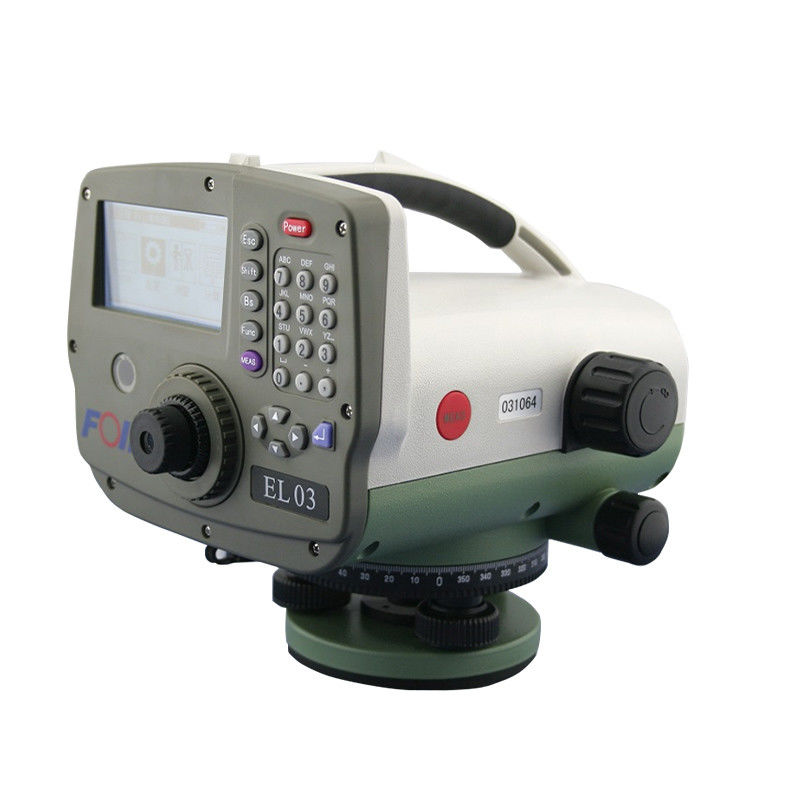

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument

Product Description

High precision FOIF EL03 digital level instruments land survey

Range: 2-110 m
Time for single measurement: ≤ 2s
LCD display with illumination
Alphanumeric keyboard
Automatic height and delta height calculation
Optical reading is available
Internal memory (3000 points) or SD card for data storage, supports USB and RS-232C ports and (EL03) for data transfer

For measuring range: ≤110m
Accuracy EL03: Electronic ≤ ±0.3mm, Optical ≤ ±1.5mm
Reliable reading, even in dim light condition
Remote control measurement by (EL03)
Onboard programs, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate

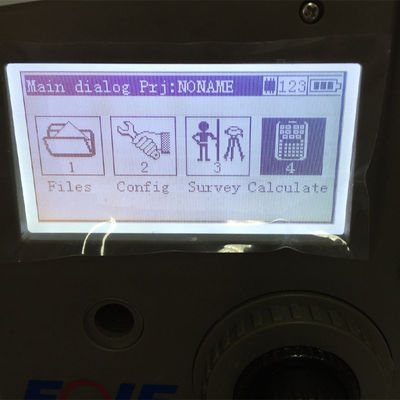

LCD display presents all important measured data at a glance and shows the next step to take
Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
Quick height and distance result-the reading is displayed almost instantly with measurement

FOIF EL03 Digital Electronic Auto Level Construction Land Survey Instrument 0

Specification

Model	EL03
Accuracy
Standard deviation of km double run
Electronic measurement	+/-0.3mm*
Optical measurement	+/- l.5mm*
Electronic measurement
Time for single measurement	≤2s
Range	2-110m
Measurement modes	Singel, average, tracking
Display resolution(m/in selectable)
Height	0.1mm/0.0001ft
Distance	1mm/0.001ft
Telescope
Clear objective aperature	45mm
Magnification	32x
Field of view at 100m	2.3m
Shortest focus distance	1.0m
Automatic compensator
Working range	14'
Setting accuracy	+/-0.3"
Power
Battery	2000mAh Ni-MH rechargeable
Continuous operating time	12 hours
Measurement programs
On-board programs	BF, BFFB, BFBF, BBFF, FBBF,
	Stake out, intermediate
Onboard adjustment	Yes
Others
Memory	3000 points, support SD card
Display	LCD, 7lines*32characters
Keyboard	Alphanumeric keyboard
Interface	USB, RS232 optional
Sensitivity of circular level	8'/2mm
Water and dusp protection	IP55
Operating temperature	-20°C~50°C
Net weight	3kg

Why Choose Us

Certifications

Company Profile

Our Service

Packing & Delivery

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field.

2.All products will have been strictly quality checked in factory before sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
