Good price online

products details

Home > Products >
Automatic Level
>
FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey
All Category

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder
Contact Us
Miss. Lili Zhou
yyi658731@gmail.com
wechat ChengDu-3987
Contact Now
FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey
  • name
  • name
  • name
  • name
  • name
  • name

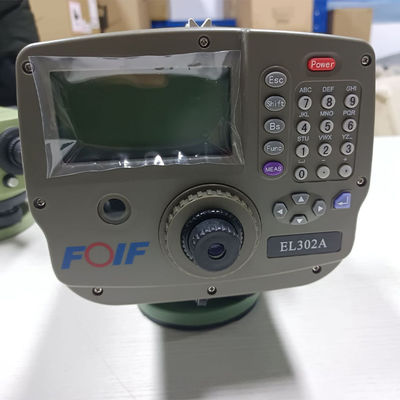

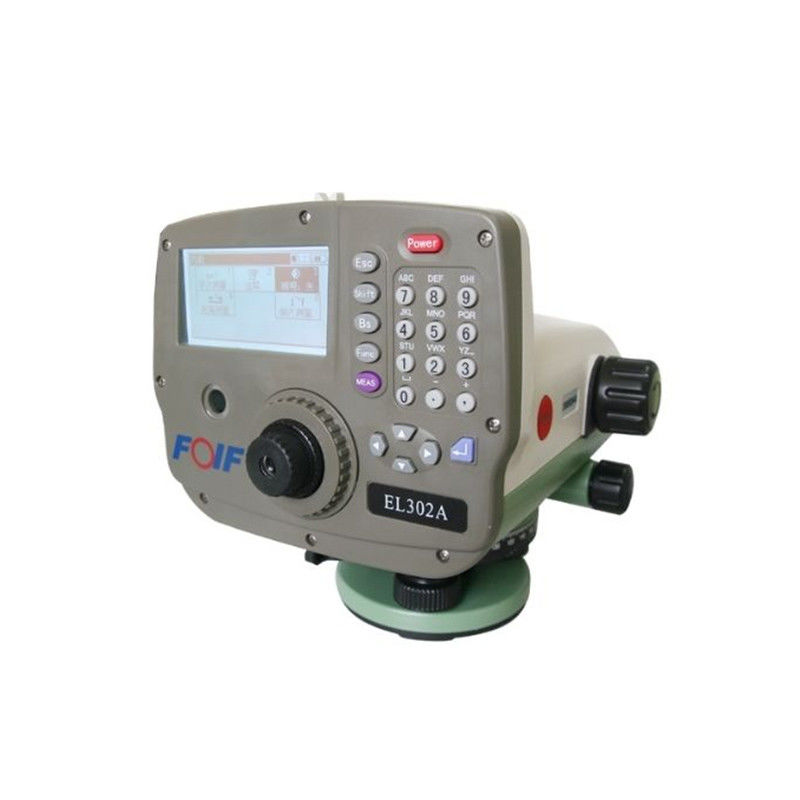

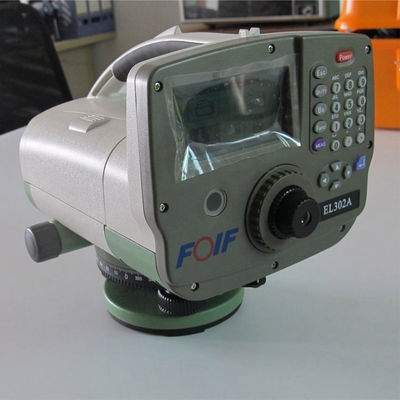

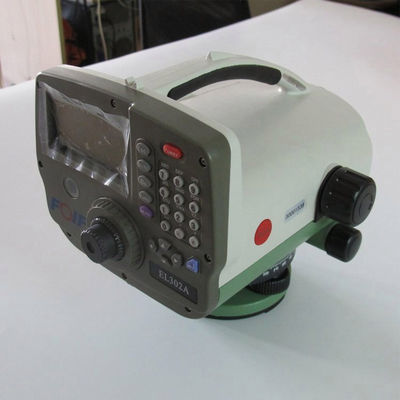

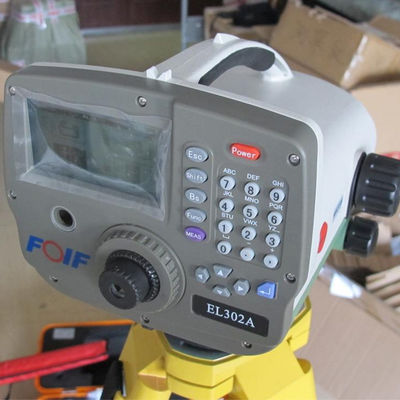

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey

Brand Name: FOIF
Model Number: EL302A
MOQ: 1 set
Price: ＄1,250.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
High Precision Electronic Level
Customized Support:
OEM, ODM, OBM
Brand Name:
Stonex EL302A Level
Model:
FOIF
Magnification:
32X
Compensation Range:
±15′
Compensating Error:
0.2″
Display:
LCD Display
Shortest Sighting Distance:
1m
Time:
1s
Usb Data Transfer:
Support
Operating Time:
>12 Hours
Waterproof And Dustproof:
IP55
Highlight:

FOIF EL302A auto level survey instrument

,

Laser auto level survey instrument

,

Land Survey auto levelling laser

Product Description

FOIF EL302A Digital Level With High Precision LCD Screen For Land Survey



Product Description
Features:
EL300 Series Digital Level:
  • Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button
  • Quick height and distance result-the reading is displayed almost instantly with measurement

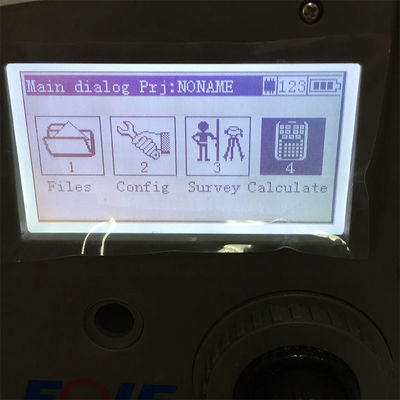

  • LCD display presents all important measured data at a glance and shows the next step to take
  • Reliable reading, even in dim light conditions
  • Standard deviation of 1km double run: ≤±0.6mm (electronic reading)
  • Far measuring range: ≥ 105m
  • On board program, such as BF, BFFB, BFBF, BBFF, FBBF, stake out, intermediate
Available models:
  • EL302A
  • EL312A
  • Available Bar Code Staff: Light compact measuring Tape (B3120),
    Telescopic Aluminum 5m (B2650) and Fixed Height Fiber Glass 2m or 3m (B2620 or B2630)

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 0FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 1FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 2FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 3FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 4



Specification



Accuracy
Electronic measurement
±0.7mm
optical measurement
±1.5mm
Distance measurement
D10m: ±0.2%*D
Electronic measurement
time for single measurement
≤2s
Range
2-105m
Measurement modes
Single, average, tracking
Display resolution(m/inch selectable)

Height
0.01mm/0.00001ft
Distance
1mm/0.001ft
Telescope
Clear objective aperture
45mm
Magnification
30x
Field of view at 100m
2.6m
Shortest focus distance
1.0m
Automatic compensator
Working range
14'
Setting accuracy
±0.5"

Power
Battery
2000mAh Ni-MH rechargeable
Continuous operation time
12hours

Measurement programs
On-board programs
BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate
Onboard adjustment
Yes

Others
Memory
3000points, supports SD card
Display
LCD, 7 lines*32characters
Keyboard
Alphanumerical key board
Interface
USB, RS-232C optional, Bluetooth
Sensitivity of circular level
8'/2mm
Water and dust protection
IP54
Operating Temp
-20℃~+50℃
Net Weight
3kg




Why Choose Us



Certifications

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 5

Company Profile
FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 6




Our Service
FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 7

Packing & Delivery

FOIF EL302A Laser Digital Auto Level Survey Instrument For Land Survey 8

FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field.

2.All products will have been strictly quality checked in factory before sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
