200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement

Brand Name: SOUTH
Model Number: SDE-28S+
MOQ: 1 piece
Price: $4200,00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Place Of Origin:
China
Warranty:
1 Year
Product Name:
Echo Sounder South SDE-28S+
Frequency:
200KHz
Speed Range:
1300 - 1700m/s
Measuring Ability:
0.3 - 600 M
Accuracy:
0.01m±0.1%D
Size:
340mm×280mm×130mm
Supply Ability:
1 ~ 30 day
Highlight:

Ultrasonic Echo Sounder

,

Underwater Echo Sounder

,

Underwater echo depth sounder

Product Description

Ultrasonic Underwater Measurement Depth Echo Sounder South SDE-28S+ For Underwater Mapping



Specification

Product Information

Item Content
Language Chinese, English
Operating Frequency 200KHZ
Beam Angle 5°
Depth Range 0.3M ~ 600M
Output Power Maximum 300W
Measurement Frequency Adjustable, up to 14HZ (supports 30HZ)
Resolution 1CM
Measurement Range 8M, 15M, 30M, 60M, 120M, 240M, 300M (supports interchange)



SPECIFICATIONS
Measurements
Frequency 200 kHz
Beam Angle 5°
Depth Resolution 0.1ft/0.01m
Accuracy 0.01m±0.1%D (0.1% of depth value)
Ping Rate 14Hz, Maximum 30Hz
Sound Velocity 1300-1700m/s, resolution is 1m/s
Depth Range 0.3-300m/900ft
Draft 0-9.9m
Gain Control AGC and TVG, depth and gain, a double door tracking
Output data format SDH-13D, DES025, INN455, ODOM etc
Physical
Environmental -30°~+60° non-condensing
Output Power Up to 300W
Power Supply 9-15V DC, less than 25w,
110~265V AC (optional),
Dimension 35cm¡29cm¡14cm
Weight 7.5kg
Hardware part
Embedded system index CPU frequency 1.6GHz
Internal memory 1G
Memory capacity 4G high-speed CF card
(supports extended storage)

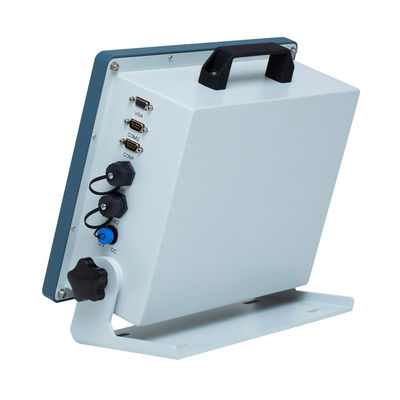

I/O interface 2 USB
2 RS232
1 VGA interface

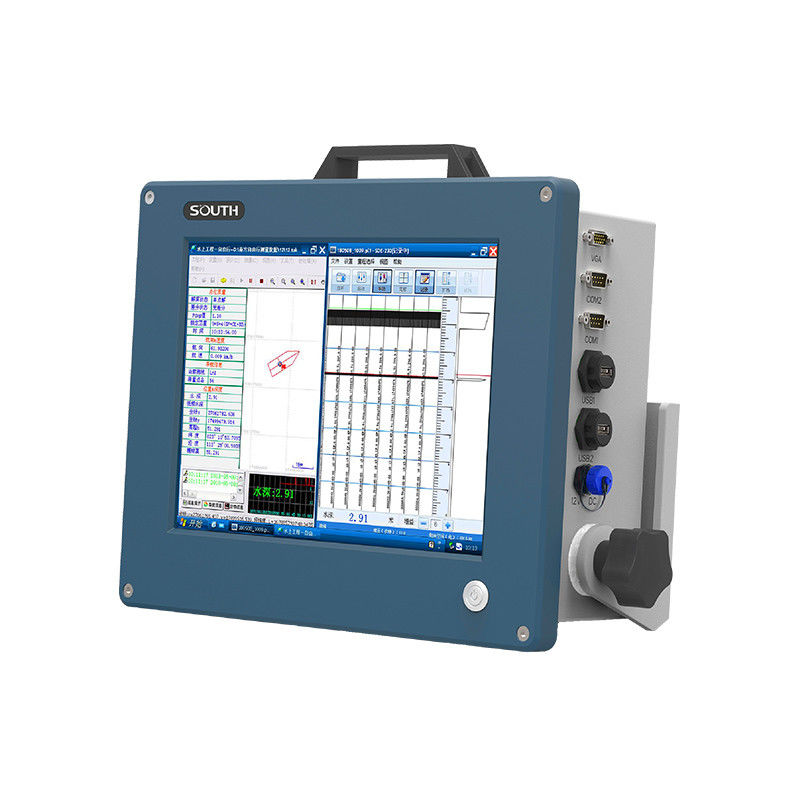

Display Panel Layout Touch screen
Embedded windows XP OS
Power ON/OFF
Interface protection
Separate Panel Overlay for
Keyboard
Mouse
Remarks Measurement accuracy and operation range might vary due to atmospheric conditions, signal multipath, obstructions, observation time, temperature, signal geometry and number of tracked satellites. Specifications subject to change without prior notice.

Shallow water tracking mode
Suitable for high intensity operation on water
All aluminium alloy housing, compact structure, good shock resistance

200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 0

DSP chip processing technology software automatic control
Software control of pulse width, gain, power and gear.
DSP chip processing technology ensures reliable waveform and water depth value

200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 1

200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 2 200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 3

Certifications
200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 4

Company Profile
200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 5


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 6

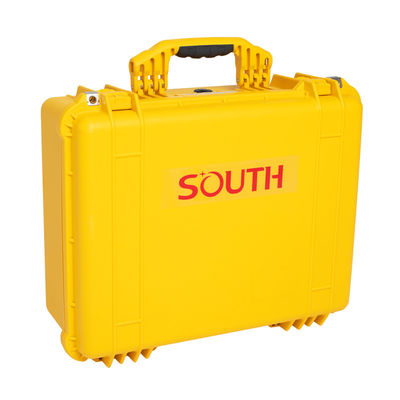

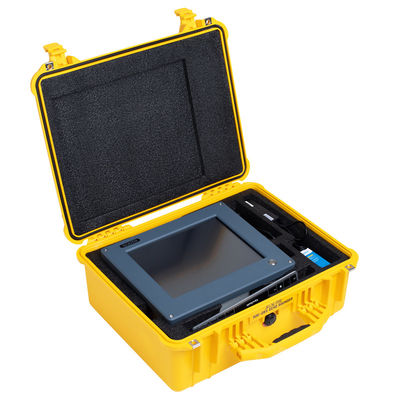

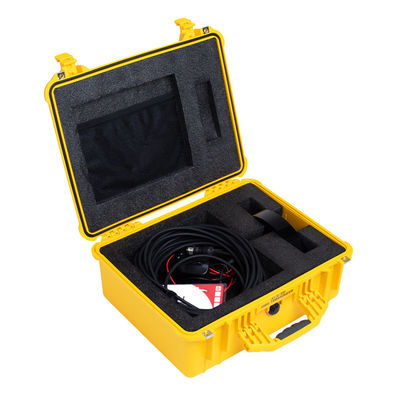

Packing & Delivery
200 kHz Ultrasonic Depth Echo Sounder South SDE-28S+ For Underwater Mapping Measurement 7
