Bluetooth CHCNAV M11 PRO/I93 Geodetic Gnss Receiver Visual RTK Rover DGPS Surveying Instrument

Brand Name:	CHCNAV
Model Number:	X11 PRO
MOQ:	1 piece
Price:	$5,550.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Material:

Magnesium Alloy

Operating Language:

English

Application:

Land Surveying

Channels:

Customized Support:

OEM, ODM, OBM

L1c/a, L1c, L2c, L2e, L5

Glonass:

G1/G2/G3

Galileos:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A,L1C,L2C,L5

Transmitting Speed:

9.6Kbps, 19.2Kbps

Supply Ability:

1 ~ 30 day

Highlight:

CHCNAV geodetic gnss receiver

geodetic gnss receiver RTK Rover

M11 rtk bluetooth

Product Description

CHC CHCNAV M11 PRO/I93 Gnss Visual Rtk Rover GPS Receiver DGPS Surveying Instrument with 3D Modeling

Product Description

High Accuracy Land Surveying Instrument CHCNAV X16 Pro/i93 GPS RTK for Excellent Visual Stakeout and Best Price GPS RTK

X16Pro RTK is a new product that integrates CHC video photogrammetry technology, supporting video measurement and 3D modeling. It quickly and efficiently obtains high-precision 3D coordinates in batches from live videos, achieving what you see is what you measure, and can be measured while walking. Support AR real scene navigation and immersive real scene 3D modeling, with no getting lost and one shot in place, improving efficiency by 50%. Upgraded the anti daze design of the center pole, combined with following the lofting, the lofting base map rotates with people, and the navigation is viewed from the first perspective, without the need to struggle to identify direction and distance. Upgraded Huace Yizhang Network ™ The same origin 2.0 algorithm as the cloud has increased the fixed rate to 96%. Support non-invasive super inertial navigation, no initialization required, point to point measurement, and reliable accuracy. At the same time, it supports satellite based differential and continuous testing without network, and can be tested with or without network.

Product Details

GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2C, L2P(Y), L5
GLONASS	L1, L2, L3
Galileo	E1, E5a, E5b, E6*
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6*
PPP	B2b-PPP
SBAS (EGNOS Support)	L1, L5
GNSS Accuracies
Real time kinematic (RTK)	H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS Initialization time: < 10s Initialization time: 99.9%
Post-processing kinematic (PPK)	H: 3 mm + 1 ppm RMS V: 5 mm + 1 ppm RMS
Post-processing static	H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS
Code differential	H: 0.4 m RMS \| V: 0.8 m RMS
Autonomous	H:1.5 m RMS \| V: 2.5 m RMS
Visual survey	Typical 2~4 cm, range 2~15 m
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s, Hot start: < 10 s Signal re-acquisition: < 1 s
IMU update rate	200Hz
Till angle	0-60°
RTK tilt-compensated	Additional horizontal pole-tilt uncertainty typically less than 10 mm + 0.7 mm/° tilt
Environments
Temperature	Operating: -40°C to +65°C (-40°F to +149°F)Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% non-condensation
Ingress protection	IP67 (according to IEC 60529)
Drop	Survive a 2-meter pole-drop
Vibration	Compliant with ISO 9022-36-08 and MIL-STD-810G- 514.6-Cat.24.
Waterproof and breathable membrane	Prevent water vapor from entering under harsh environments
Electrical
Power consumption	UHF/ 4G RTK Rover w/o camera: Typical 2.8 W Visual Stakeout/Visual Survey: Typical 4 W
Li-ion battery capacity	Built-in non-removable battery 9,600 mAh, 7.4 V
Operating time on internal battery	UHF/ 4G RTK Rover w/o camera: up to 34 h Visual Stakeout/Visual Survey: up to 24 h UHF RTK Base: up to 16 h Static: up to 36 h
External power input	9 V DC to 28 V DC
Hardware
Size (D x H)	Φ 152 x 81 mm (Φ 5.98 x 3.19 in)
Weight	1.15 kg (2.54 lb)

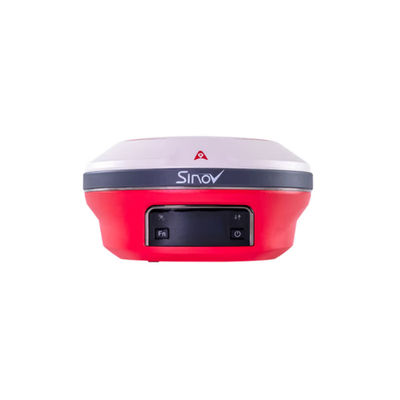

Front panel	1.1'' OLED Color Display 2 LED, 2 physical buttons
Tilt sensor	Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances. E-Bubble leveling.

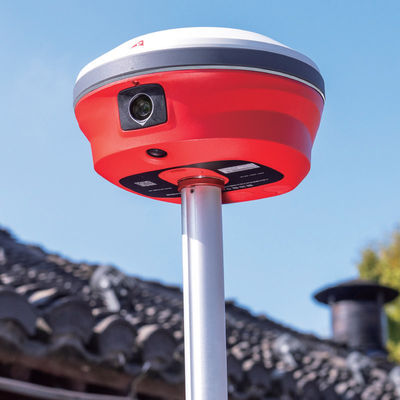

Cameras
Sensor pixels	Global shutter with 2 MP & 5 MP
Field of view	75°
Video frame rate	25 fps
Image group capture	Method: video photogrammetry. Rate: typically 2 Hz, up to 25Hz. Max. capture time: 60s with an image group size of appr. 60MB.
lllumination	Starlight-grade camera. OmniPixel®-GS technology. Maintain full color at illumination levels as low as 0.01 lux.
Communication
SIM card type	Nano-SIM card
Network modem	Integrated 4G modem: TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM
Wireless connection	NFC for device touch pairing
Wi-Fi	Wi-Fi IEEE 802.11a/b/g/n/ac, access point mode
Bluetooth®	5.0 and 4.2 +EDR, backward compatible
Ports	1 x 7-pin LEMO port (RS-232) 1 x USB Type-C port (external power, data download, firmware update) 1 x UHF antenna port (TNC female)
Built-in UHF radio	Rx/Tx: 410 - 470 MHz Transmit Power: 0.5 W to 2 W Protocol: CHC, Transparent, TT450, Satel Link rate: 9 600 bps to 19 200 bps Range: Typical 3 km to 5 km, up to 15 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory. Support 128 GB external expansion
Compliance with Laws and Regulations
International standards	NGS Antenna Calibration, IEC 62133-2:2017+A1, IEC 62368- 1:2014, UN Manual Section 38.3

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
