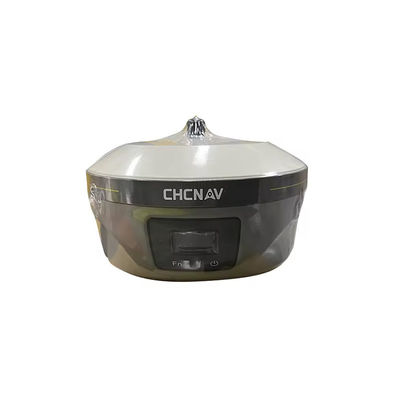

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel

Brand Name:	CHCNAV
Model Number:	M6ii rover+B5 base
MOQ:	1 piece
Price:	$4,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Material:

Magnesium Alloy

Operating Language:

English

Application:

Land Surveying

Channels:

Customized Support:

L1c/a, L1c, L2c, L2e, L5

Glonass:

G1/G2/G3

Galileos:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A,L1C,L2C,L5

Transmitting Speed:

9.6Kbps, 19.2Kbps

Supply Ability:

1 ~ 30 day

Highlight:

CHC GNSS RTK Receiver

1408channel GNSS RTK Receiver

CHCNAV rtk gps unit

Product Description

CHC CHCNAV with 1408channel with IMU Professional gps Surveying Instruments High Accuracy Survey Equipmens Rtk

Product Details

Model	M6ii rover
GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2C, L2P(Y), L5
GLONASS	L1, L2
Galileo	E1, E5a, E5b, E6
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6
PPP	B2b-PPP
SBAS	L1, L5
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: < 10s
	Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS
Post-processing kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post-processing static	Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS
Code differential	Vertical: 0.8 m RMS
Autonomous	Horizontal: 1 m RMS
Autonomous	Vertical: 1.5 m RMS
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s
	Hot start: < 10 s
	Signal re-acquisition: < 2 s
IMU update rate	200Hz
Tilt angle	0~60°
RTK tilt -compensated	Additional horizontal pole-tilt uncertainty typically less than 10 mm + 0.7 mm/° tilt
Hardware
Size (L x W x H)	119 mm x 119 mm x 85 mm (4.7 in × 4.7 in x 3.3 in)
Weight	0.73 kg (1.60 lb)
Front panel	4 LED, 2 physical buttons
Environment	Operating: -40°C to +65°C (-40°F to +149°F)
Environment	Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances.
Tilt sensor	E-Bubble leveling
Communication
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth®	V 4.2
Ports	1 x USB Type-C port (external power, data download, firmware update) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410 - 470 MHz Transmit Power: 0.5 W ,1 W Protocol: CHC, Transparent, TT450, Satel Link rate: 9,600 bps to 19,200 bps Range: Typical 3 km to 5 km, up to 8 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory
Electrical
Power consumption	Typical 2.2 W (depending on user settings)
Li-ion battery capacity	Built-in non-removable battery 6,800 mAh, 7.4 V
Operating time on internal battery	RTK Rover: up to 24 h UHF RTK Base: up to 10.5 h Static: up to 25 h
Certifications
CE Mark; FCC Part 15 Subpart B Class B; NGS Antenna Calibration

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel 1

Model	B5 base
GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2P (Y), L2C, L5
GLONASS	L1, L2
Galileo	E1, E5a, E5b, E6
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6
PPP	B2b-PPP
SBAS	L1, L5
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: < 10s
	Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS
Post-processing kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post-processing static	Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS
Code differential	Vertical: 0.8 m RMS
Autonomous	Horizontal: 1m RMS
Autonomous	Vertical: 1.5 m RMS
Positioning rate	up to 10 Hz
Time to first fix	Cold start: < 45 s
	Hot start: < 30 s
	Signal re-acquisition: < 2 s
Hardware
Size (L x W x H)	Φ 160.5mm x 103 mm (Φ 6.32 in ×4.06 in)
Weight	1.73kg (3.81 lb)
Environment	Operating: -40°C to +65°C (-40°F to +149°F)
Environment	Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	E-Bubble leveling
Front panel	2 LED
Front panel	0.96'' OLED Display
Certifications
NGS Antenna Calibration
Communication
Network modem	Integrated 4G modemLTE(FDD): B1,B2,B3,B4,B5,B7,B8,B20 DC- HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8 EDGE/GPRS/GSM 850/900/1800/1900 MHz
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth®	V 4.1
Others	NFC
Ports	1 x 7-pin LEMO port (RS-232) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410 - 470 MHz Transmit Power: up to 5 W Protocol: CHC, Transparent, TT450 Link rate: 9,600 bps to 19,200 bps Range: Typical 5 km to 8 km, up to 25 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory
Electrical
Power consumption	12 W (depending on user settings)
Li-ion battery capacity	2 x 7000 mAh, 7.4 V
Operating time on internal battery	UHF receive / transmit (5 W): 8 h to 12 h Static: up to 15 h
External power input	9 V DC to 28 V DC

Certifications

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel 2

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

Products Details

Home > Products >

GNSS RTK Receiver

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel

All Category

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel

Brand Name:	CHCNAV
Model Number:	M6ii rover+B5 base
MOQ:	1 piece
Price:	$4,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

CHCNAV

Model Number:

M6ii rover+B5 base

Product Name:

RTK Receiver

Material:

Magnesium Alloy

Operating Language:

English

Application:

Land Surveying

Channels:

1408

Customized Support:

OEM

GPS:

L1c/a, L1c, L2c, L2e, L5

Glonass:

G1/G2/G3

Galileos:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A,L1C,L2C,L5

Transmitting Speed:

9.6Kbps, 19.2Kbps

Minimum Order Quantity:

1 piece

Price:

$4,500.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

CHC GNSS RTK Receiver

1408channel GNSS RTK Receiver

CHCNAV rtk gps unit

Product Description

CHC CHCNAV with 1408channel with IMU Professional gps Surveying Instruments High Accuracy Survey Equipmens Rtk

Product Details

Model	M6ii rover
GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2C, L2P(Y), L5
GLONASS	L1, L2
Galileo	E1, E5a, E5b, E6
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6
PPP	B2b-PPP
SBAS	L1, L5
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: < 10s
	Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS
Post-processing kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post-processing static	Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS
Code differential	Vertical: 0.8 m RMS
Autonomous	Horizontal: 1 m RMS
Autonomous	Vertical: 1.5 m RMS
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s
	Hot start: < 10 s
	Signal re-acquisition: < 2 s
IMU update rate	200Hz
Tilt angle	0~60°
RTK tilt -compensated	Additional horizontal pole-tilt uncertainty typically less than 10 mm + 0.7 mm/° tilt
Hardware
Size (L x W x H)	119 mm x 119 mm x 85 mm (4.7 in × 4.7 in x 3.3 in)
Weight	0.73 kg (1.60 lb)
Front panel	4 LED, 2 physical buttons
Environment	Operating: -40°C to +65°C (-40°F to +149°F)
Environment	Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances.
Tilt sensor	E-Bubble leveling
Communication
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth®	V 4.2
Ports	1 x USB Type-C port (external power, data download, firmware update) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410 - 470 MHz Transmit Power: 0.5 W ,1 W Protocol: CHC, Transparent, TT450, Satel Link rate: 9,600 bps to 19,200 bps Range: Typical 3 km to 5 km, up to 8 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory
Electrical
Power consumption	Typical 2.2 W (depending on user settings)
Li-ion battery capacity	Built-in non-removable battery 6,800 mAh, 7.4 V
Operating time on internal battery	RTK Rover: up to 24 h UHF RTK Base: up to 10.5 h Static: up to 25 h
Certifications
CE Mark; FCC Part 15 Subpart B Class B; NGS Antenna Calibration

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel 1

Model	B5 base
GNSS Performance
Channels	1408 channels
GPS	L1C, A, L2P (Y), L2C, L5
GLONASS	L1, L2
Galileo	E1, E5a, E5b, E6
BeiDou	B1I, B2I, B3I, B1C, B2a, B2b
QZSS	L1, L2, L5, L6
PPP	B2b-PPP
SBAS	L1, L5
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: < 10s
	Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS
Post-processing kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post-processing static	Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS
Code differential	Vertical: 0.8 m RMS
Autonomous	Horizontal: 1m RMS
Autonomous	Vertical: 1.5 m RMS
Positioning rate	up to 10 Hz
Time to first fix	Cold start: < 45 s
	Hot start: < 30 s
	Signal re-acquisition: < 2 s
Hardware
Size (L x W x H)	Φ 160.5mm x 103 mm (Φ 6.32 in ×4.06 in)
Weight	1.73kg (3.81 lb)
Environment	Operating: -40°C to +65°C (-40°F to +149°F)
Environment	Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	E-Bubble leveling
Front panel	2 LED
Front panel	0.96'' OLED Display
Certifications
NGS Antenna Calibration
Communication
Network modem	Integrated 4G modemLTE(FDD): B1,B2,B3,B4,B5,B7,B8,B20 DC- HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8 EDGE/GPRS/GSM 850/900/1800/1900 MHz
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth®	V 4.1
Others	NFC
Ports	1 x 7-pin LEMO port (RS-232) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Rx/Tx: 410 - 470 MHz Transmit Power: up to 5 W Protocol: CHC, Transparent, TT450 Link rate: 9,600 bps to 19,200 bps Range: Typical 5 km to 8 km, up to 25 km with optimal conditions
Data formats	RTCM 2.x, RTCM 3.x, CMR input / output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memory
Electrical
Power consumption	12 W (depending on user settings)
Li-ion battery capacity	2 x 7000 mAh, 7.4 V
Operating time on internal battery	UHF receive / transmit (5 W): 8 h to 12 h Static: up to 15 h
External power input	9 V DC to 28 V DC

Certifications

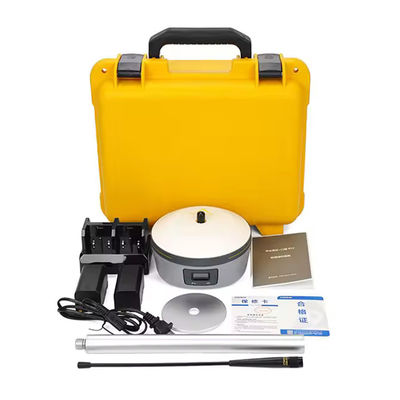

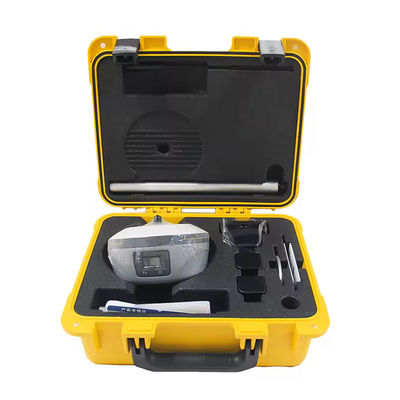

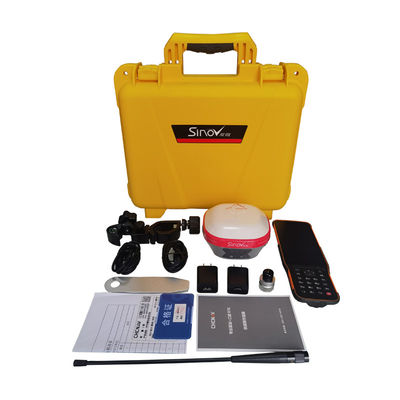

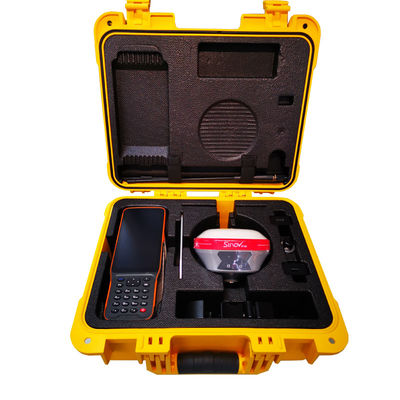

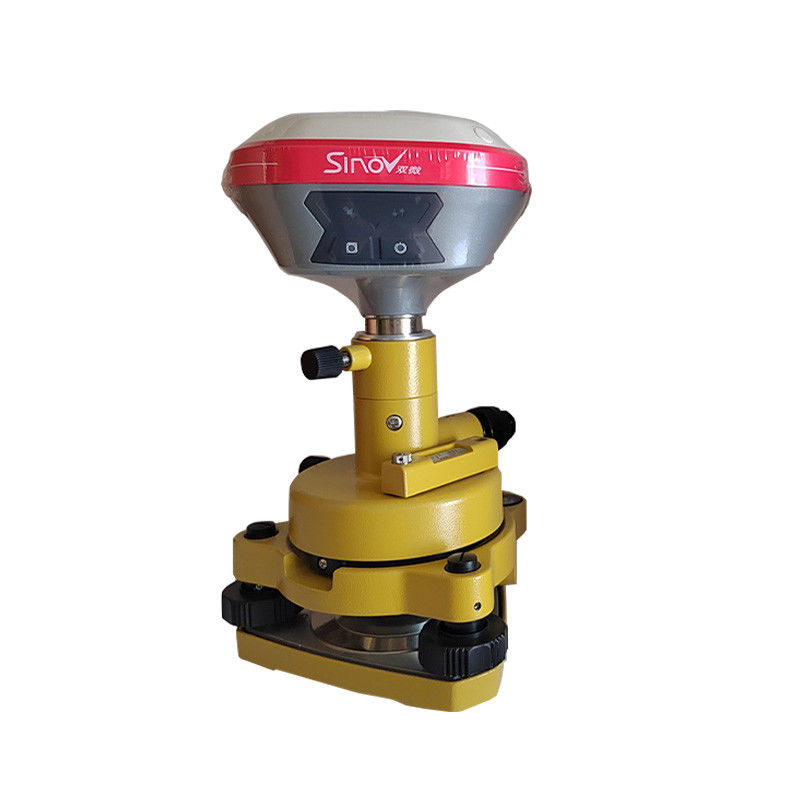

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel 2

Company Profile

FAQ

Our Service

Packing & Delivery

Tags:

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

products details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel

CHC GNSS RTK Receiver

1408channel GNSS RTK Receiver

CHCNAV rtk gps unit

Company Profile

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

CHC CHCNAV GNSS RTK Receiver GPS Unit Survey Equipmens 1408channel

CHC GNSS RTK Receiver

1408channel GNSS RTK Receiver

CHCNAV rtk gps unit

Company Profile

base rover gps

gps rtk gnss

rtk survey equipment
