Camera AR Stakeout GPS GNSS RTK Receiver 1408 Channel Hitarget U3 Surveying

Brand Name:	UFO
Model Number:	U3 AR
MOQ:	1 piece
Price:	$3,700.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Material:

Magnesium Alloy

Operating Language:

English

Application:

Land Surveying

Channels:

1408 Channels

Weight:

L1, L1C, L2C, L2P, L5

Glonass:

G1/G2/G3

Galileos:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A,L1C,L2C,L5

Protection Grade:

Supply Ability:

1 ~ 30 day

Highlight:

AR Stakeout GNSS RTK Receiver

GNSS RTK Receiver U3 Surveying

Hitarget gnss gps rtk

Product Description

Camera AR Stakeout GPS GNSS RTK Receiver 1408 Channel Hitarget U3 Surveying

Technical Parameters

GNSS Performance	Channels	1408
	GPS	GPS:L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
	GLONASS	G1P1,G2P2,G1OC,G2OC,G3OC
	Galileo	E1BC,E5a,E5b,E5ALTBOC,E6BC
	BeiDou	B1, B2, B3
	SBAS	L1
	QZSS	L1CA,L2C,L5,L1C,LEX
	L-Band
GNSS Accuracies	Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS Initialization time: < 10 s Initialization reliability: > 99.9%
GNSS Accuracies	Positioning rate	5 Hz
Hardware	Size (L x W x H)	φ152mm×H86mm
	Weight	890g
	Environment	Operating:-30°C to +65°C (-40°F to +149°F) Storage: -40°C to +80°C (-40°F to +185°F
	Ingress protection	IP67 waterproof and dustproof, protected from temporary mmersion to depth 1m
	Tilt sensor	Calibration-free IMU for pole -tilt compensation.Immune to magnetic disturbances.
	Front panel	4 status indicators and power indicator
Communication	Wi-Fi	802.11 b/g/n, access point mode
	Blue Tooth	V2.1+EDR/V4.1 dual mode, Class2
	Others	NFC
	UHFradio	Transmitting power: 1w, frequency: 410-470MHz Radio protocol: SATEL, PCC-EOT, TrimTalk450S, South9600, South19200, Hi-Target9600, Hi-Target19200, TrimMarkIII (19200), TrimMarkI, GEOTALK, GEOMARK
	Data storage	8 GBinternal memory
Electrical	Input voltage	DC 9V-28V
	Li-ion battery capacity	Built-in non-removable battery 6800 mAh, 7.2V
	Operating time on internal battery	RTK:Rover 10.5h
INS	Inertial navigation accuracy	2cm/60°
Hand thinness parameters	model	C5
	network	4G All Netcom (Mobile Unicom Telecom 2G/3G/4G)
	operating system	Google Android 9.0
	CPU	64-bit, 8-core 2.0GHz
	LCD panel	5.5-inch AMOLED self-illuminating display
	Data line interface	USB-TypeC
	battery	3.8V 5200mAh
	Three Preventions	IP68
	Stylus	yes
	Size (L x W x H)	225x78x18.5mm
AR imaging	pixel	200W
	Frame rate	25HZ
	Layout accuracy	2CM

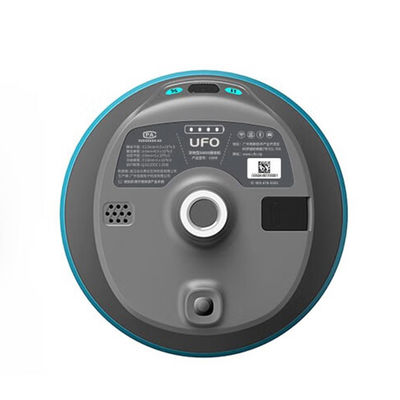

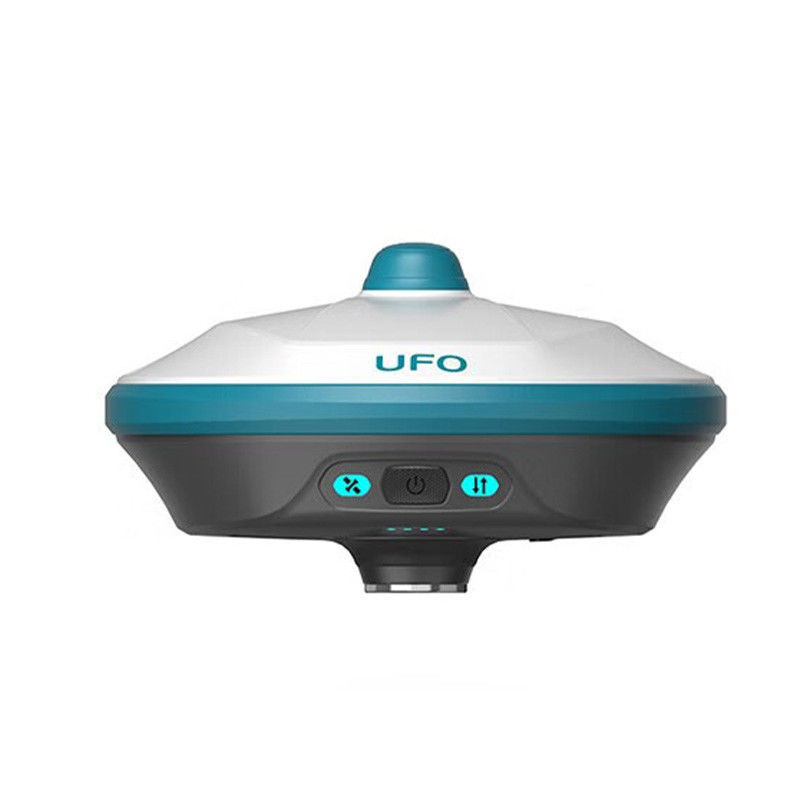

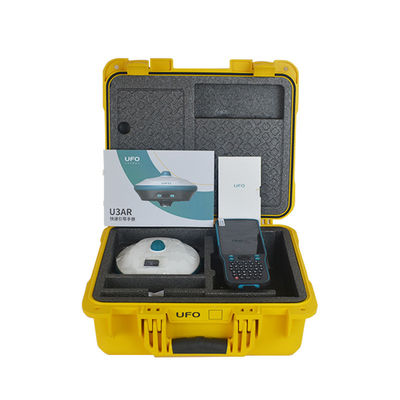

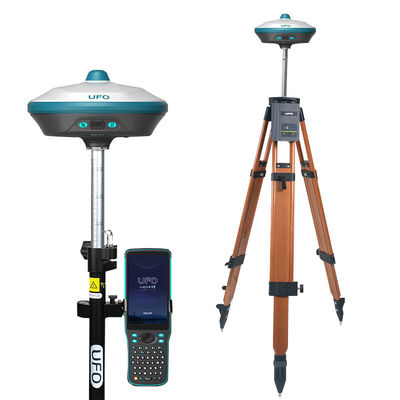

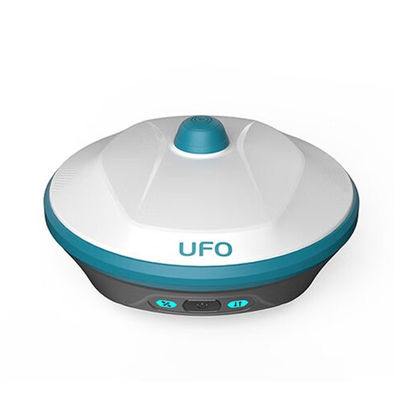

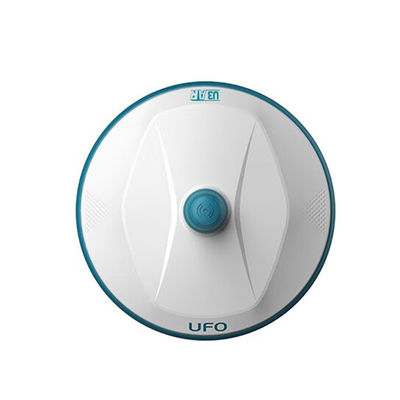

u3AR产品.jpg u3AR产品1.jpg

u3AR产品2.jpg u3AR产品3.jpg

Camera AR Stakeout GPS GNSS RTK Receiver 1408 Channel Hitarget U3 Surveying 4

Certifications

Camera AR Stakeout GPS GNSS RTK Receiver 1408 Channel Hitarget U3 Surveying 5

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
