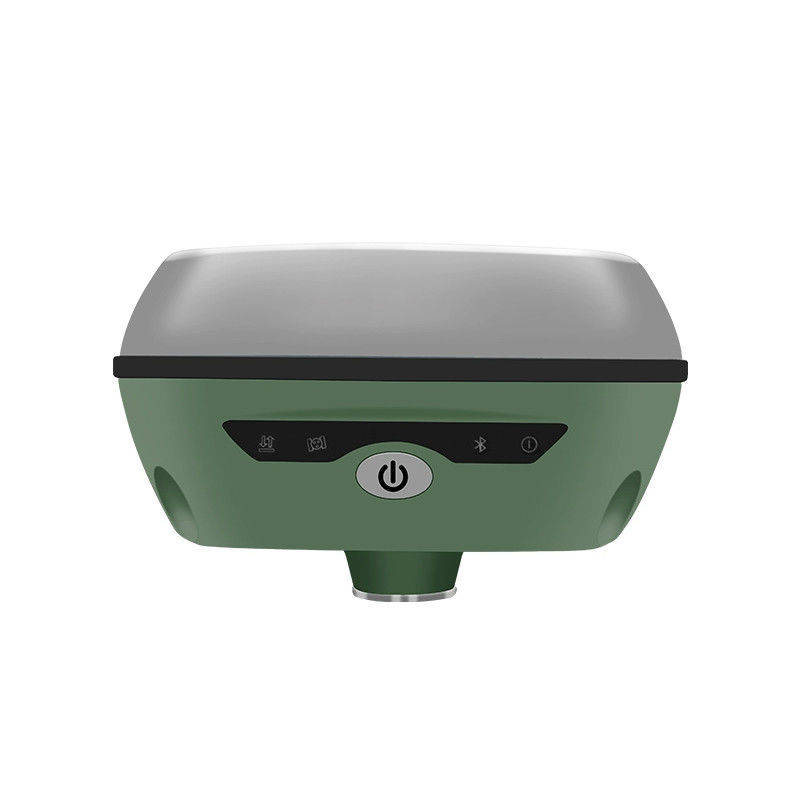

South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board
  • name
  • name
  • name
  • name
  • name
  • name
  • name

South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board

Brand Name: SANDING
Model Number: T7
MOQ: 1 piece
Price: $4,000.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
RTK Receiver
Material:
Magnesium Alloy
Operating Language:
English
Application:
Land Surveying
Channels:
1598 Channels
Weight:
890g
GPS:
L1C/A,L2P,L2C,L5,L1C*
SBAS:
L1C/A,L5*
QZSS:
L1 、L2C、 L5
Glonass:
G1,G2,G3*
Galileos:
E1,E5b,E5a,E5 AltBoc*,E6c*
Protection Grade:
IP68
Supply Ability:
1 ~ 30 day
Highlight:

Sanding GNSS RTK Receiver

,

Shikra T7 GNSS RTK Receiver

,

Sanding south gnss receiver

Product Description

South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board





Product Description

South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 0South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 1South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 2South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 3South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 4South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 5South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 6

Technical Parameters





Number of channels
1598


BDS
B1I,B2I,B3I, B1I,B3I,B1C,B2a,B2b

GPS
L1C/A,L2P,L2C,L5,L1C*

GLONASS
G1,G2,G3*

GALILEO
E1,E5b,E5a,E5 AltBoc*,E6c*

QZSS
L1 ,L2C, L5/ IRNSS:L5*/ SBAS:L1C/A,L5*

Positioning output rate
1Hz~20Hz

Differential support
CMR,RTCM2.X,RTCM3.0,RTCM3.2

Static format support
GNS, Rinex dual format static data



RTK positioning accuracy
Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm
(D is the distance between the measured points)



Static positioning accuracy
Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points)
Elevation: ±(5+0.5×10¯6D) mm
(D is the distance between the measured points)

DGPS positioning accuracy
Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm

Initialization time
<10 seconds

Initialization reliability
＞99.99%

IMU tilt compensation
Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30°
IMU tilt angle:0°~60°






communication


NFC Communication
Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller equipped NFC wireless
communication module needed)
WiFi
802.11b/g access point and client mode, can provide WiFi hotspot service
Bluetooth
BLEBluetooth 4.0 standard, support for android, ios cellphone connection
Wireless modem
Built-in radio, typically work range can be 8KM Radio repeater
I/O port
5PIN LEMO external power port + RS232, 1 radio antenna interface, Type C , Micro SIM card
frequency band:
410-470MHz
Protocol
SOUTH,Farlink,TrimTalk,ZHD, HUACE
User Interface
Buttons
One button operation
Indicators
Four indicate lights


Electrical physical properties
battery
Internal Li-on, 6800mAh, 7.4V
Power Supply
9-25V DC, overvoltage protection
size
135mm(Diameter)x84.75mm(Height)
weight
0.97kg (battery included)
material
Magnesium aluminum alloy shell


Environmental characteristics
Dust and water release
IP68 standard, protected from long time immersion to depth of 1m
Storag
-55°C~+85°C
Operating
-45℃~70℃

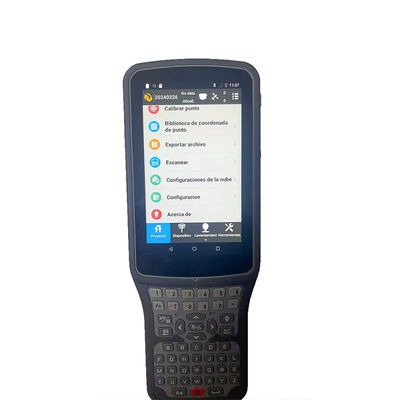

Specification





System
model
H6
operating system
Android 8.1
CPU
2.0 GHz eight-core processor
Memory
3GB RAM
Storage
32GB


Communication
Network
TDD/FDD-LTE 4G
WiFi
802.11b/g access point and client mode, can provide WiFi hotspot service
Bluetooth
V2.1+EDR/V3.0+HS/V4.1
NFC
Support NFC IGRS
USB
Mini USB, supports OTG


Electrical
Battery
7.4V, 3400mAh
Battery life
12 hours
Charging
< 4 hrs for full charge


Physical
size
206mm×85mm×40mm
Weight
470g
Operating temperature
-30℃ ~ +60℃



Certifications



South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 7



Company Profile

South GPS GNSS RTK Receiver Sanding Shikra T7 With Sino GNSS Board 8


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
