CORS GIS Data Collector SunNav M10 GNSS GPS Base Rover Station RTK Receiver

Brand Name:	STONEX
Model Number:	M10
MOQ:	1 piece
Price:	$1000.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver STONEX M10

Brand Name:

STONEX

Channel:

1408 Channels

Storage Temperature::

-40℃ ~ +80℃

GPS:

L1C/AL1C,L2C,L2P(Y),L5

GLONASS:

L1,L2

QNSS:

L1,L2,L5,L6

GALILEO:

E1,E5a,E5b,E6

Battery Like:

11 Hours

Battery:

4000mAh

Supply Ability:

1 ~ 30 day

Highlight:

CORS GIS Data Collector

SunNav GIS Data Collector

gps base rover RTK Receiver

Product Description

CORS rtk gps price RTK receiver SunNav M10 GNSS System rover station cheap price

Description
M10 is a lightweight, simple and practical high-precision full-constellation GNSS RTK receiver,

supporting five-satellites and sixteen-frequency, high-performance aluminumalloy body,

used with Android data collector, and can be used in engineering surveying, geological survey,

precision agriculture, and land survey, unmanned, geographic infor- mation,water survey, aerialphotogrammetry, etc..

Features

* Small size and high integration, the M10 inte- grate large-capacity battery, GNSS antenna,satellite positioning module,Bluetooth, etc.;

* Long battery life, low power consumption, built-in 4000mAh large-capacity battery, sup- porting more than 11 hours of battery life;

* High precision and low power consumption, using Beidou, GPS, GLONASS, Galileo, QZSS and other five- satellites sixteen frequencies, can ensure positioning accuracy in a variety of complex environments;

* The software adoptsthe standard versionmea- surement software or the flagship version mea- surement software, which has the functions of measurement, point placement, CAD stakeout, etc.;

* Adopt universal standardTYPE-C charging interface, support power bank charging, sup- port TYPE-C upgrade;

* Flexible use, can be held by hand or screwed directly to the centeringrod for measurement;

* Standard IP67 waterproof and dustproof design;

* The total weight of the deviceis 160g, which is smalland light, easy to carry;

* Built-in 4.0 Bluetooth module, support variousAndroid phone connections;

* The software supportsvarious CORS systems.

CORS GIS Data Collector SunNav M10 GNSS GPS Base Rover Station RTK Receiver 0

M10 CORS GNSS RTK Receiver GPS Land Surveying Instrument

CORS GIS Data Collector SunNav M10 GNSS GPS Base Rover Station RTK Receiver 1

Product	eSA2
GNSS Performance
Channels	1408
Satellites tracking	· GPS: L1C/A, L2P(Y), L2C, L5 · GLONASS: L1, L2 · GALILEO: E1, E5a, E5b, E6 · BDS: B1I, B2I, B3I, B1C, B2a, B2b · QZSS: L1, L2, L5, L6 · SBAS:Support
Position accuracy	RTK: 0.01 m + 1 ppm CEP Single: 1.5m
Initialization time	≤5 seconds (Typical)
Cold start	≤30 seconds
Hot start	≤3 seconds
Speed accuracy	≤0.03 m/s
Electrical
Battery	Built-in, Non-replaceable, Lithium Polymer Battery 7.4V / 1800mAh
Working time	≥10 hours
Input voltage	5V dc / 2A
Data Interface
Bluetooth	Yes
Type-C port	1 Type-C port
User Interface
Button	Power button x1
Indicator	Power indicator x1 Bluetooth indicator x1 Differential data indicator x1 Satellite indicator x1
Physical
Dimension	118mm x 52mm x 36mm
Weight	≤210 g
Environment
Operating temperature	-20℃ ~ +75℃
Storage temperature	-40℃ ~ +85℃
Water/dust-proof	IP67
Shock resistance	1.6 m free drop
Humidity	95% No condensation

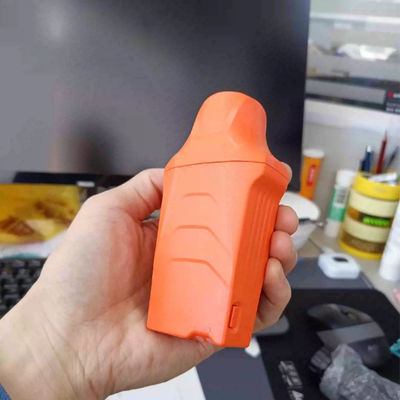

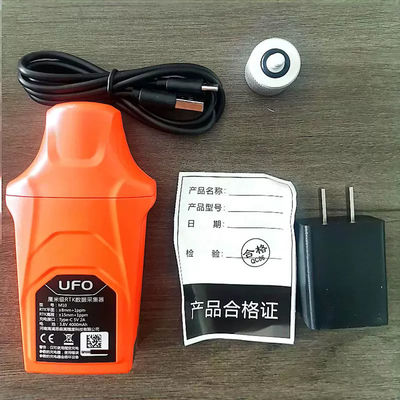

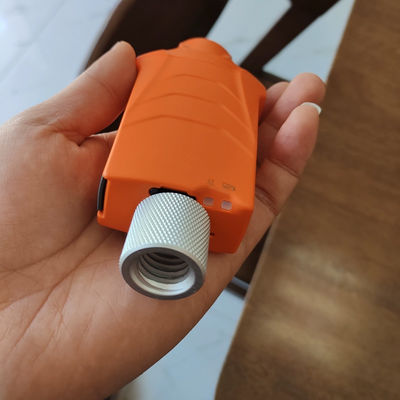

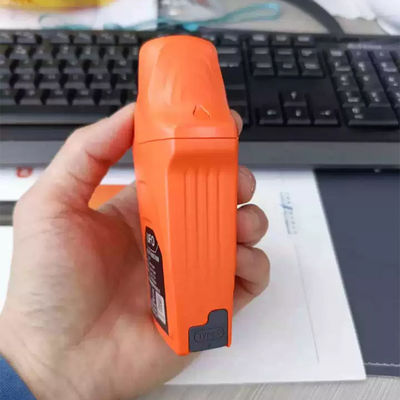

Customer Photos
