Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km

Brand Name: STONEX
Model Number: S990A
MOQ: 1 piece
Price: $3,750.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Place Of Origin:
China
Warranty:
3 Years
Product Name:
RTK Receiver STONEX S990A
Channel:
1408 Channels
Color:
Blue And White
Power:
Internal Battery
Internal UHF Radio:
2W
Removable Battery:
10200mAh
Display:
1.46 Inch OLED Display
IMU:
60°
Protocol:
SOUTH, Hi-target, Trimtalk, Transeot
Supply Ability:
1 ~ 30 day
Highlight:

Stonex S990A rtk base station and rover

,

800 Channel rtk base station and rover

,

Stonex S990A gnss base rover

Product Description

Stonex S990A GNSS RTK Receiver High Performance 800 Channels Internal Radio 8km Distance High Performance



Product Description


RECEIVER
Signal Tracking
GPS: L1 C/A, L1C, L2P. L2C, L5GLONASS: L1, L2, L3¹
BEIDOU: B1I.B2I,B3I, B1C, B2a. B2b
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2. L5
IRNSS: L5¹
SBAS
PPP
B2b PPP¹, HAS¹
Channels
800
Position Rate
Up to 20Hz
Signal Reacquisition
＜1s
RTK Signal Initialization²
Typically < 10 s
Hot Start
Typically < 15 s
Initialization Reliability
>99.9%
Internal Memory
32GB
Os
Os
Display
1.45"TFT LCD, 240 x 320 pixels
Tilt Sensor
IMU and E-bubble
STATICSURVEYING
High Precision Static Horizontal
2.5 mm+0.1 ppm RMS
High Precision Static Vertical
3.5 mm+0.4 ppm RMS
Static and Fast Static Horizontal
3 mm+0.5 ppm RMS
Static and Fast Static Vertical
5 mm+0.5 ppm RMS
CODE DIFFERENTIAL POSITIONING
Horizontal
0.25 m+1 ppm RMS
Vertical
0.50m+1 ppm RMS
SBAS POSITIONING
Accuracy
0.60 m RMS
REAL TIME KINEMATIC (< 30 Km)- NETWORK RTK⁵
Fixed RTK Horizontal
5 mm+0.5 ppm RMS
Fixed RTK Vertical
10 mm+0.5 ppm RMS
INTEGRATED GNSS ANTENNA
High accuracy multi-constellation antenna, zero phase center, with internal multipath suppression
INTERNAL RADIO (optional)⁶
Type
Tx-Rx
Frequency Range
410-470MHz
902.4-928MHz
Channel Spacing
12.5 KHz/25KHz
Range
3-4 Km in urban environment Up to 10 Km with optimal conditions²
INTERNAL MODEM
Band
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM:B2/B3/B5/B8 Nano SIM card
COMMUNICATION
I/O Connectors
5-pin Lemo connects the external power supply and external radio Type-C, for receiver power supply and data transfer 1PPS port
Bluetooth
2.1+EDR, V5.0
Wi-Fi
802.11 b/g/n
Web Ul
To upgrade the software, manage the status and settings, data download, etc. via Smartphone, tablet or other
electronic device with Wi-Fi capability
Reference Outputs
RTCM2.3, RTCM3.0,RTCM3.2 MSM, CMR, CMR+, DGPS
Navigation Outputs
NMEA0183
POWER SUPPLY
Battery
Internal rechargeable 7.2V-10200 mAh
Voltage
9 to 28 V DC external power input with over-voltage protection(5-pin Lemo)
Working Time
Up to 12 hours
Charge Time
Typically 4 hours
PHYSICAL SPECIFICATION
Dimensions
Ø151 mm x 94.5 mm
Weight
1.3Kg
Operating Temperature
-40C to 65C(-40F to 149F)
Storage Temperature
-40C to 80C(-40F to 176F)
Waterproof/Dustproof
IP68
Shock Resistance
Designed to endure to a 2 m pole drop on hardwood floor with no damage
Vibration
Vibration resistant

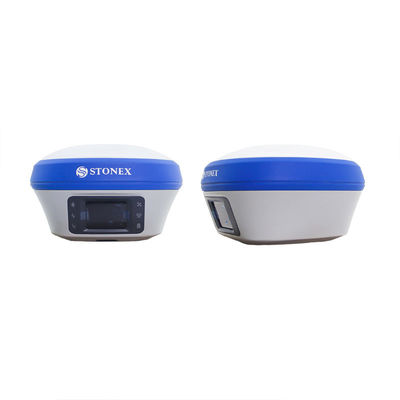

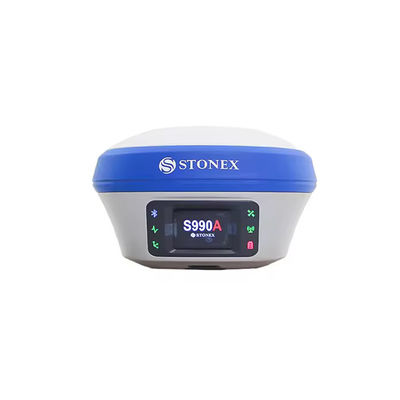

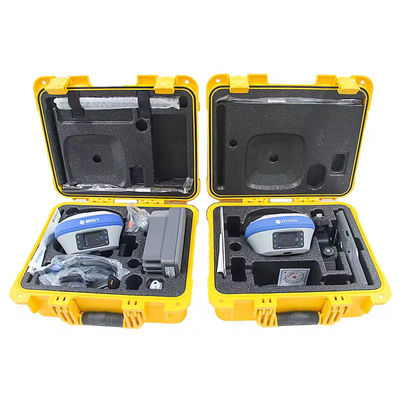

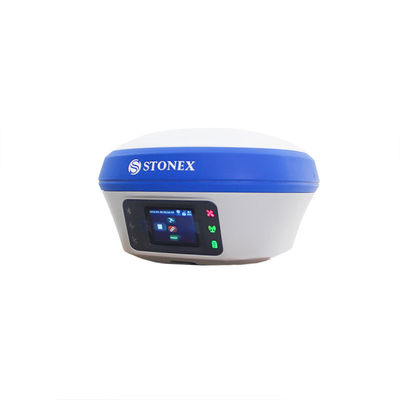

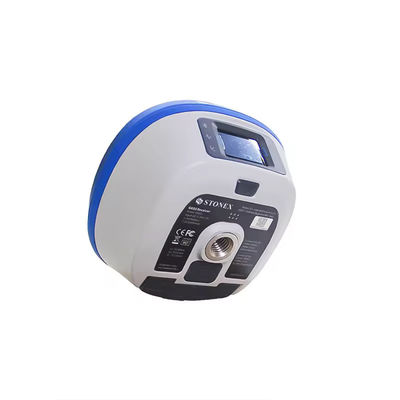

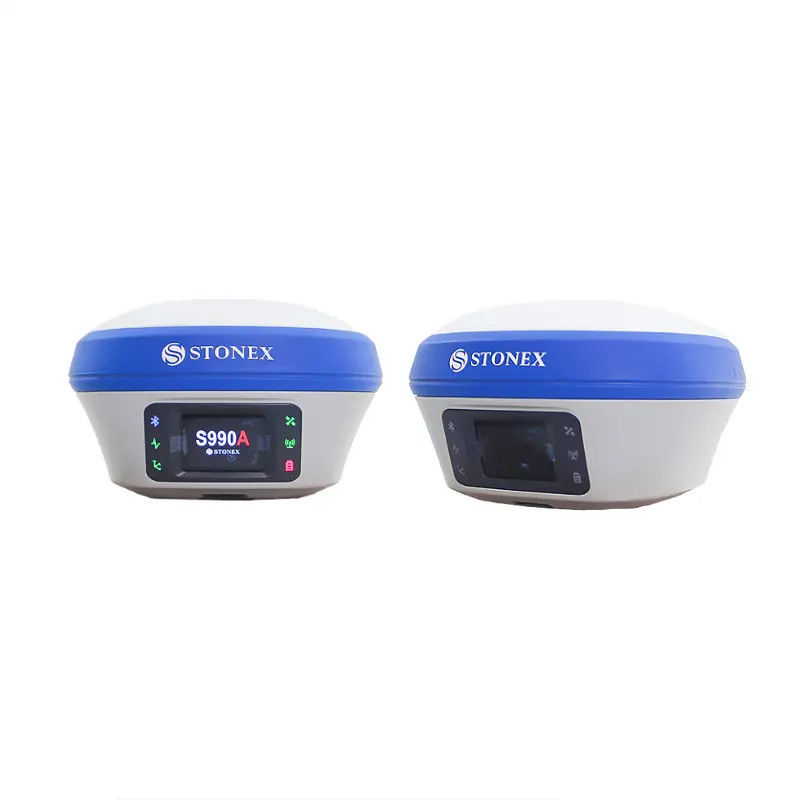

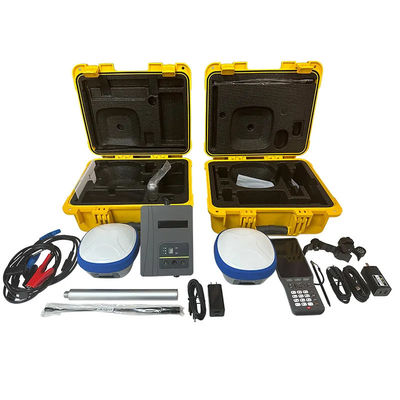

REAL PRODUCT PHOTO



Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 0

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 1Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 2

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 3

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 4Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 5

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 6Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 7

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 8Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 9

Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 10Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 11Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 12Stonex S990A GNSS RTK Base Station And Rover Receiver 800 Channel Internal Radio 8km 13
