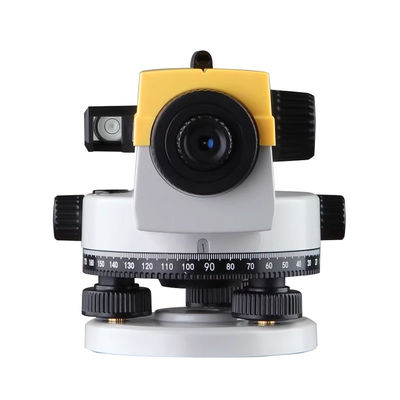

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X
  • name
  • name
  • name
  • name
  • name
  • name

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X

Brand Name: South
Model Number: NL32B
MOQ: 1 set
Price: ＄110
Packaging Details: 35X25X20 cm
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Automatic Level
Warranty:
1 Year
Temperature Range:
-20℃～50℃
Magnification:
32X
Objective Lens Aperture:
42mm
Error:
±1mm
Viewing Angle:
1°20′
Setting Accuracy:
±0.6″
Waterproof:
IPX6
Dustproof:
IPX6
Highlight:

dustproof automatic level instrument surveying

,

South NL32B automatic level instrument surveying

,

South NL32B leveling instrument

Product Description

Factory supply discount price auto level South NL32B dumpy level 32X auto level



Overview


Error 1mm
Magnification 32x
Diameter of the objective 42mm
Angle of field of view 1°20''
Shortest sighting distance 0.3M
Multiplication constan 100
Compensator range ±15'
Setting accuracy ±0.6''
Bubble accuracy 8''/2MM
Image Erect
Warranty 1 year
Net weight 1.23kg



Automatic equalization compensator a level for obtaining horizontal line of sight.

Its feature is that when the telescope line of sight is slightly tilted, the compensator moves relative to the telescope under the action of gravity, so that the ruler reading at the line of sight level can be obtained automatically and quickly.



The basic principle of compensation is: when the telescope line of sight is horizontal, the image point Z0, which is composed of object point P on the leveling scale at the same height as the main point of the objective lens, should fall on the cross wire intersection point Z. When the telescope is tilted by a small Angle α towards the horizontal line, the cross - filar intersection Z moves up, but the like point Z0 remains in place, resulting in a reading difference of Z0Z.

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 0

Product feature:
1.Shockproof, mildew proof and water proof.
2.Easy operation.
3.Optical lens for clear reading.

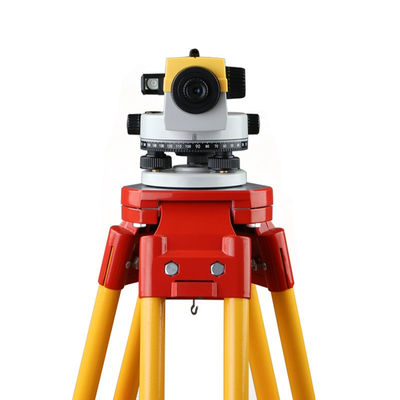

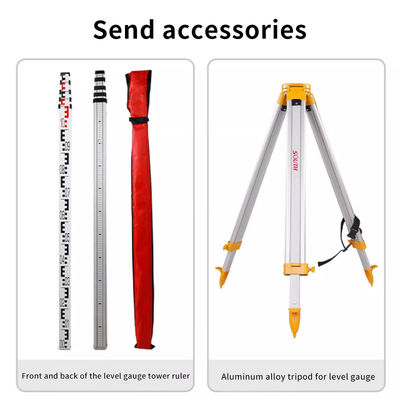

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 1Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 2

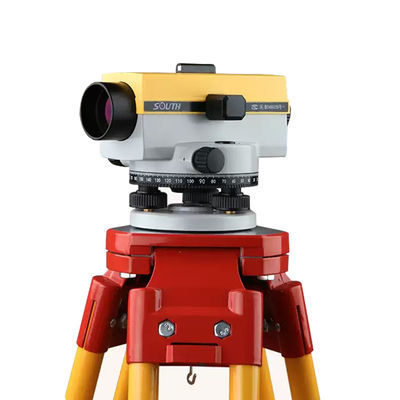

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 3Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 4
Certifications

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 5

Company Profile

Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 6


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 7

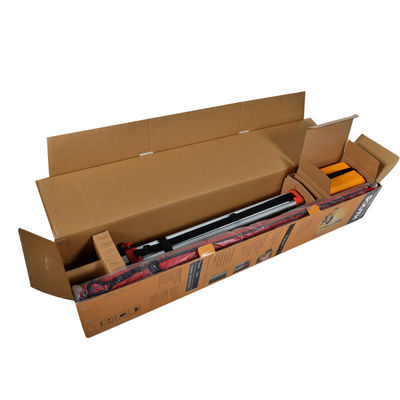

Packing & Delivery
Dustproof South NL32B Dumpy Automatic Level Instrument Surveying 32X 8



Tags:

auto level survey instrument

automatic level surveying

dumpy leveling
