Good price online

products details

Home > Products >
Automatic Level
>
FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument
All Category

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder
Contact Us
Miss. Lili Zhou
yyi658731@gmail.com
wechat ChengDu-3987
Contact Now
name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument

Brand Name: FOIF
Model Number: DSZ2
MOQ: 1 set
Price: ＄310
Packaging Details: 35X23X23 cm
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Automatic Level
Warranty:
1 Year
Temperature Range:
-30℃～50℃
Magnification:
32X
Objective Lens Aperture:
45mm
Error:
1mm
Sensitivity Of Circular:
10′/2mm
Setting Accuracy:
±0.3″
Waterproof:
IPX6
Dustproof:
IPX6
Highlight:

FOIF auto level machine

,

Optical Transit auto level machine

,

Optical Transit automatic level surveying

Product Description

FOIF DSZ2 Optical transit surveying and mapping instrument Auto Level For tunnel construction of engineering survey



Overview


Error 1mm
Magnification 32x
Diameter of the objective 45mm
Angle of field of view 1°20''
Shortest sighting distance 0.3M
Multiplication constan 100
Compensator range ±15'
Setting accuracy ±0.3''
Bubble accuracy 10''/2MM
Image Erect
Warranty 1 year
Net weight 2.5kg



Products Description

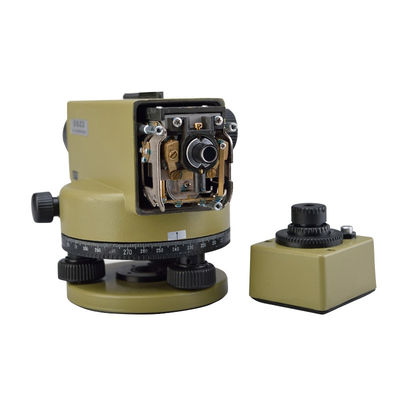

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 0

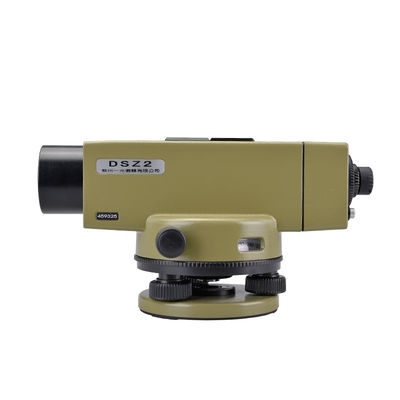

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 1

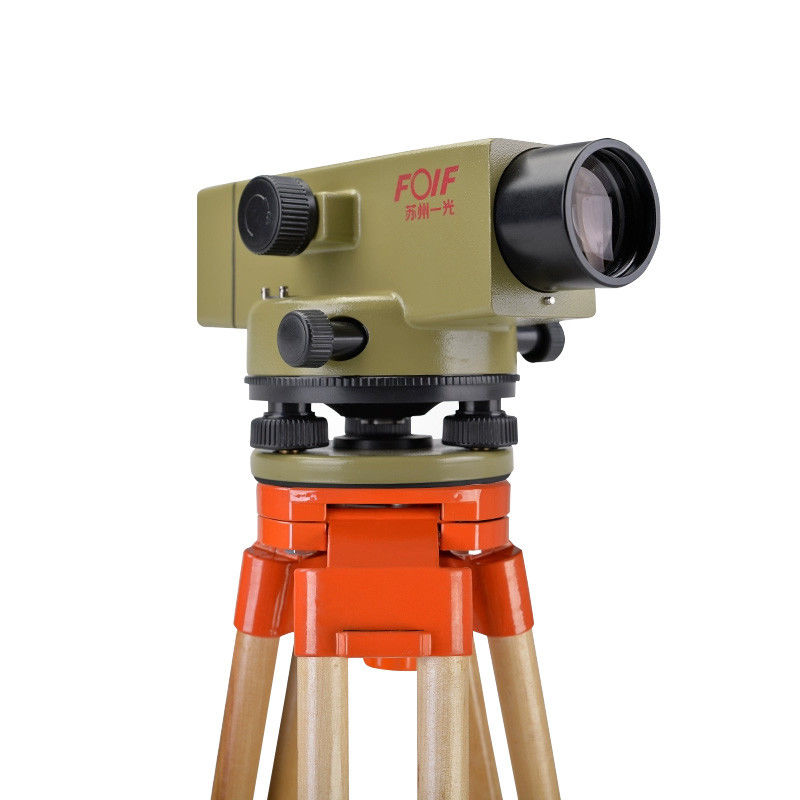

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 2

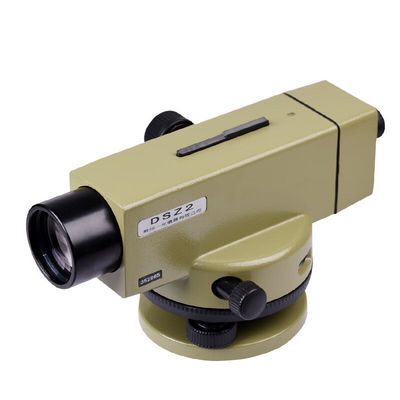

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 3

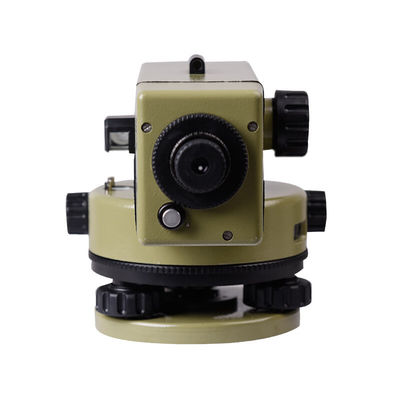

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 4
Certifications

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 5

Company Profile

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 6


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 7

Packing & Delivery

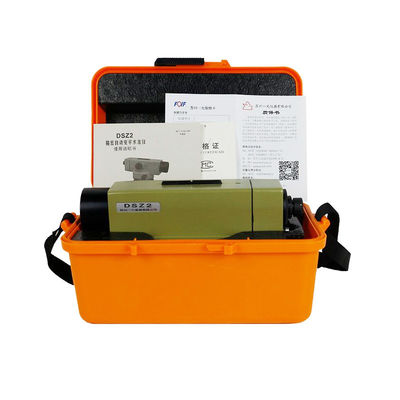

FOIF DSZ2 Optical Transit Auto Level Machine Surveying And Mapping Instrument 8
