Foif Optical DS05 38X Auto Levelling Machine Land Surveying Tools Instrument

Brand Name:	FOIF
Model Number:	DS05
MOQ:	1 set
Price:	＄680
Packaging Details:	35X23X23 cm
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Automatic Level

Warranty:

1 Year

Temperature Range:

-30℃～50℃

Magnification:

Objective Lens Aperture:

Error:

0.5mm

Sensitivity Of Circular:

10′/2mm

Setting Accuracy:

±0.3″

Waterproof:

Dustproof:

Highlight:

land surveying auto levelling machine

Foif auto levelling machine

Levelling land surveying tools

Product Description

Automatic Surveying Instrument Foif Optical DS05 38X high precision Level Anping accuracy reaches ± 0.3 ″

KEY FEATURES

High precision level
Built-in parallel-plate micrometer, Optical reading for micrometer
0.01mm can be displayed on the screen
Magnification 38x
To be used with Invar Staff for accurate results

45mm objective aperture
38x Magnification
2.3m Field of view at 100m
1.6m Shortest focus distance
100 Multiplication factor
±0.5mm* Standard deviation of 1km double run
15' Working range
0.5'' Setting accuracy and 2s Setting time
10mm Parallel plate micrometer Range
0.01mm Interval Parallel plate micrometer
0.1mm Estimation Parallel plate micrometer
10'/2mm Sensitivity of circular level per 2mm run

PRODUT SPECIFICATION

Model	DS05
Telescope
Image	Erect
Clear objective aperture	45mm
Magnification	38x
Field of view at 100m	2.3m
Shortest focus distance	1.6m
Multipication factor	100
Additive constant	0
Accuracy
Standard devlation of 1km double run	±0.5mm
Automatic compensator
Working range	15'
Setting accuracy	±0.5mm
Setting time	≤2s
Others
Sensitivity of circular level per 2mm run	10'/2mm
Operating temp	-30°C~+50°C
Net weight	3.5kg
Parallel plate micrometer
Range	10mm
Interval	0.1mm
Estimation	0.01mm
Accessories
Diagonal eyeplece(FJ19)	Optional
Tripod (YGL165)	Optional
Invar staff (BGYCH 2m)	Optional

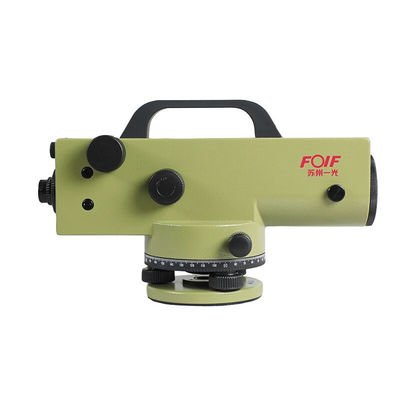

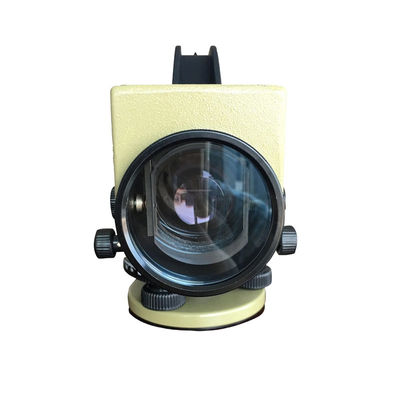

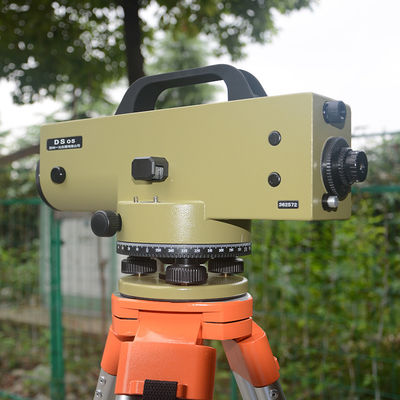

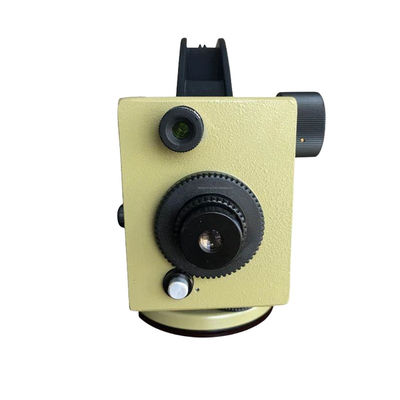

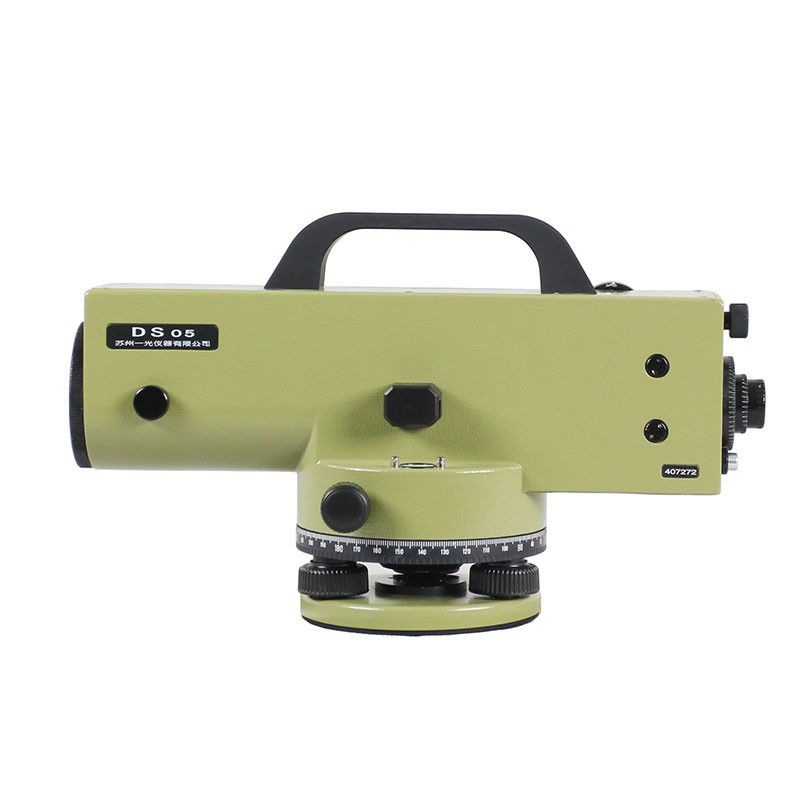

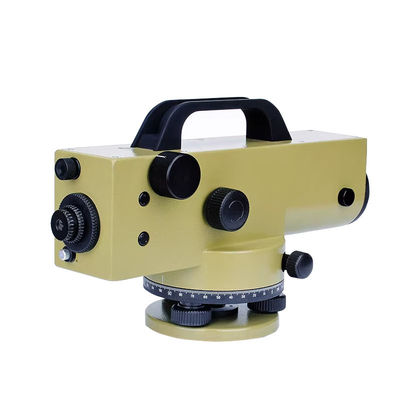

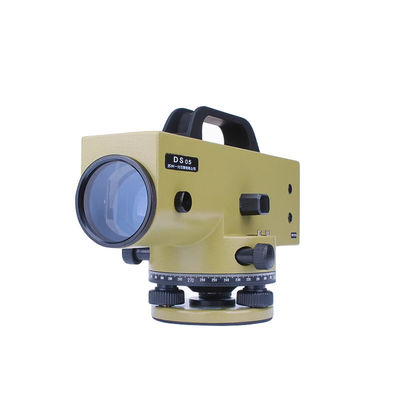

Foif Optical DS05 38X Auto Levelling Machine Land Surveying Tools Instrument 0

Foif Optical DS05 38X Auto Levelling Machine Land Surveying Tools Instrument 1

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),

North America(4.00%),Eastern Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
