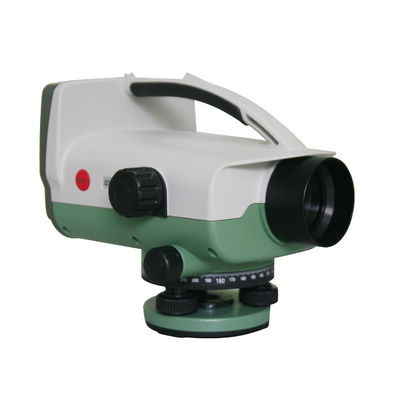

Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A

Brand Name: FOIF
Model Number: EL302A
MOQ: 1 set
Price: ＄1150,00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Automatic Level FOIF EL302A
Warranty:
1 Year
Type:
Digital
Electronic Measurement:
±0.7mm
Optical Measurement:
±1.5mm
Measurement Modes:
Single, Average, Tracking
Magnification:
30x
Field Of View At 100m:
2.6m
Working Range:
14'
Setting Accuracy:
±0.5"
Range:
1.5-110m
Height:
0.01mm/0.00001ft
Battery:
2000mAh
Highlight:

Automatic Level Instrument

,

FOIF EL302A Automatic Level

,

FOIF EL302A automatic optical level

Product Description
 FOIF EL302A Digital Level Survey Instrument Auto Level Magnetic damping pendulum compensator




Product Description



Far measuring range: ≤110m

Accuracy: EL302A ≤±0.7mm

Reliable reading, even in dim light conditions

Remote control measurement by bluetooth

Onboard programs, such as BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate

LCD display presents all important measured data at a glance and shows the next step to take

Quicker and easier than an optical level; Easy one-touch operation, simply push the MEAS button

Quick height and distance result- the reading is displayed almost instantly with measurement



LCD display, with illumination

Alphanumeric keyboard, 24keys

Automatic height and delta height calculation

Optical reading is available

Internal memory(3000points) or SD card for data storage, supports USB, RS-232C ports and Bluetooth for data transfer



Specification







Accuracy
Electronic measurement ±0.7mm
optical measurement ±1.5mm
Distance measurement D10m: ±0.2%*D
Electronic measurement


time for single measurement ≤2s

Range

 2-105m

Measurement modes

 Single, average, tracking
Display resolution(m/inch selectable)
Height 0.01mm/0.00001ft

Distance

 1mm/0.001ft

Telescope

Clear objective aperture

 45mm

Magnification

 30x

Field of view at 100m

 2.6m
Shortest focus distance 1.0m

Automatic compensator


Working range 14'
Setting accuracy ±0.5"



Power
Battery 2000mAh Ni-MH rechargeable
Continuous operation time 12hours



Measurement programs
On-board programs BF, BFFB,BFBF,BBFF,FBBF, stake out, intermediate
Onboard adjustment Yes



Others
Memory 3000points, supports SD card
Display LCD, 7 lines*32characters
Keyboard Alphanumerical key board
Interface USB, RS-232C optional, Bluetooth
Sensitivity of circular level 8'/2mm
Water and dust protection IP54
Operating Temp -20℃~+50℃
Net Weight 3kg



Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 0Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 1





32x magnification objective lens imaging positive image

Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 2

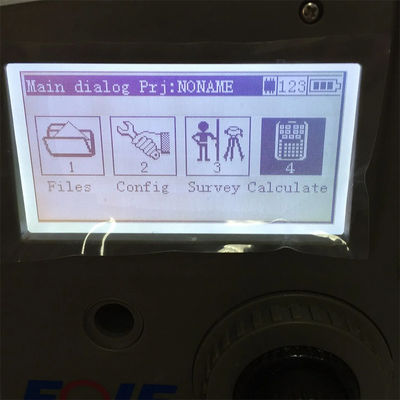

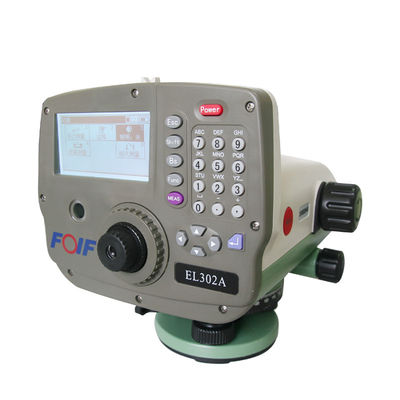

All-number keys, graphic window displays before and after measurement data simultaneously

Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 3



Clear eyepieces to fine-tune the object to be measured more clearly

Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 4



Micro-adjustment of the handwheel for more accurate data during measurement

Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 5

Certifications
Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 6

Company Profile
Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 7


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 8

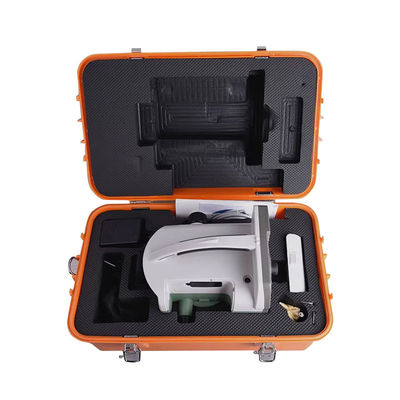

Packing & Delivery
Optical Digital Automatic Level Land Surveying Instrument FOIF EL302A 9
