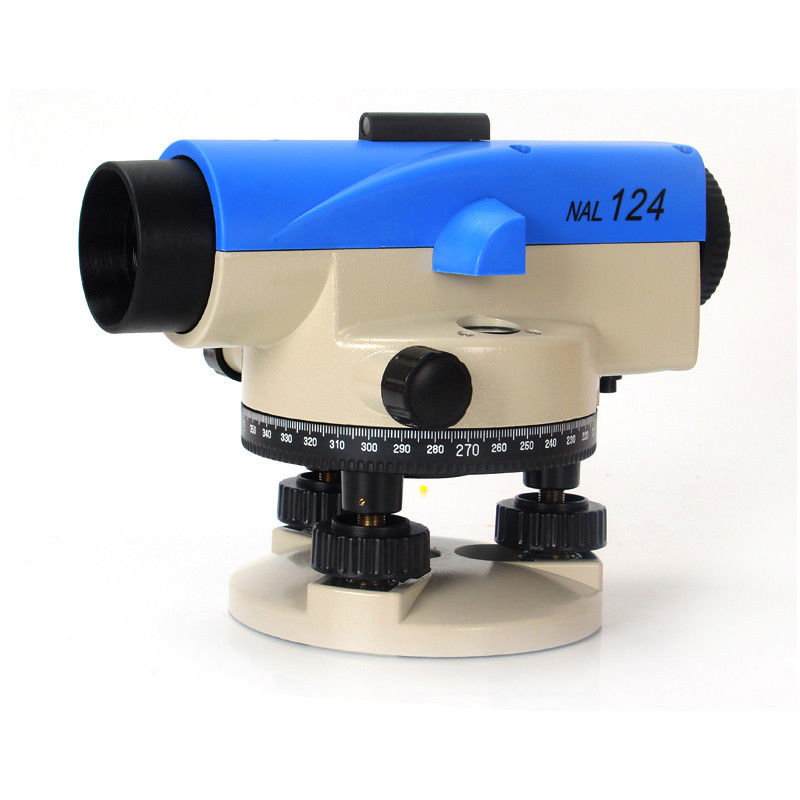

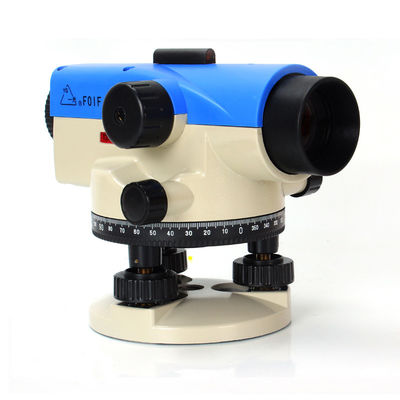

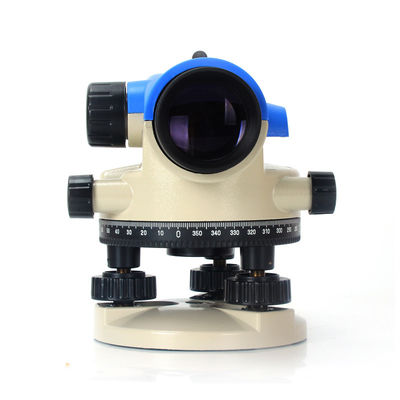

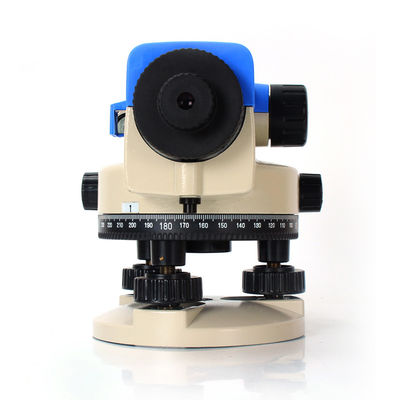

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X

Brand Name: FOIF
Model Number: NAL124
MOQ: 1 set
Price: ＄165
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Automatic Level FOIF NAL124
Warranty:
1 Year
Magnification:
24X
Setting Accuracy:
≤0.5"
Field Of View At 100:
>3.2m
Shortest Focusing Distance:
≤0.6m
Multiplication Constant:
100
Free Diameter Of Objective:
36mm
Circular Bubble:
8'/2mm
Additive Constant:
0
Working Range:
≥±15'
Graduation:
360 Or 400gon
Weight:
2kg
Highlight:

Self Leveling auto level digital

,

Engineering auto level digital

,

24X automatic self leveling laser

Product Description

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X





Product Description



Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 0
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 1
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 2
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 3

Specifications





Magnification 24X
Standard deviation per kilometer double-run ±2.0mm
Setting accuracy(standard deviation) <0.5"
Compensator working scope ≥±15′
Telescope imaging Erect
Clear objective aperture 36mm
Field of view at 100m >3.2m
Shortest focusing distance 0.5m
Stadia multiplication constant 100
Stadia additive constan 0
Circular bubble precision 8′/2mm

Graduation

 360 or 400gon
Interval 1 or 1gon
Adoption (Base Plate) Flat and Dome
Central fixing screw W 5/8" (55°)
Storage temperature -40℃ to +75℃
Operating temperature -30℃ to +50℃
Water and dust resistance IP55
Weight without container 2.0kg

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 4

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 5

Usage

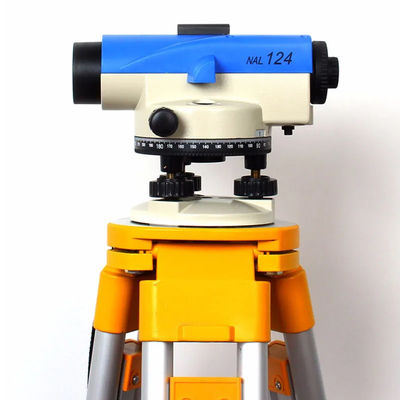

一, Instrument Installation
1,Adjust the tripod to the human eye level position, tighten the screws.
2,Adjust the tripod roughly horizontal, the tripod fixed on the ground
3,Mount the instrument on the tripod and tighten the centre screw.
4,adjust the foot screw handwheel, so that the blister is centred.
二, the blister levelling method
1,Adjust the instrument foot screw handwheel, so that the blister is centred.
2,screw the foot screw handwheel, so that the bubble to the centre of the scribing circle to move 1/2
3,the use of hexagonal wrench to adjust the bubble screw, so that the bubble moved to the centre
4,Repeat the above steps until the telescope turned to any direction of the circle water bubble is always in the centre.
5, the instrument turned 180 ° original blister should be in the centre, otherwise it must be corrected.

Certifications

Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 6

Company Profile
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 7


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 8

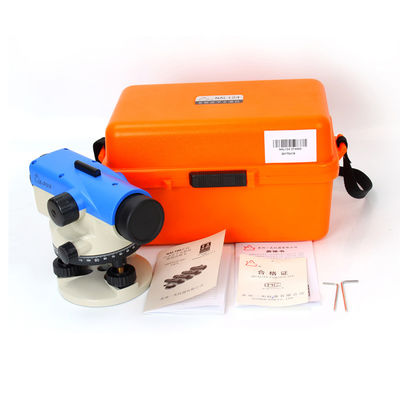

Packing & Delivery
Laser Electronic Auto Level Digital Self Leveling Optical Engineering Tool 24X 9
