High Precision Measuring Digital Auto Level Instrument SEOP DS32 Customized

Brand Name:	SEOP
Model Number:	DS32
MOQ:	1 set
Price:	＄140
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Automatic Level SEOP DS32

Warranty:

1 Year

Magnification:

Setting Accuracy:

≤0.4"

Field Of View At 100:

>3.2m

Shortest Focusing Distance:

≤0.8m

Multiplication Constant:

Free Diameter Of Objective:

Circular Bubble:

8'/2mm

Additive Constant:

Working Range:

≥±15'

Graduation:

360 Or 400gon

Weight:

1.35kg

Highlight:

Measuring auto level instrument

customized auto level instrument

customized digital automatic level

Product Description

High Precision Measuring Digital Auto Level Instrument SEOP DS32 Customized

Product Paramenters

Core Compensation Guarantee Accuracy

The unique design of the high quality magnetic damping compensator ensures the accuracy and stability of the instrument.

Automatic levelling, one key to solve the problem

With electric motor at the foot screw, press the red button, three-axis linkage, automatic levelling.

40MM large aperture objective lens

Greatly increase the amount of light intake, clearer image.

32 times high definition lens

See farther than other levelling instruments, work in a wider range of ultra-long-distance measurements, clearer imaging.

ABS housing, waterproof and dustproof

The body design abandons the traditional top plus sealing cover design will be the instrument top full metal seal, waterproof and dustproof better

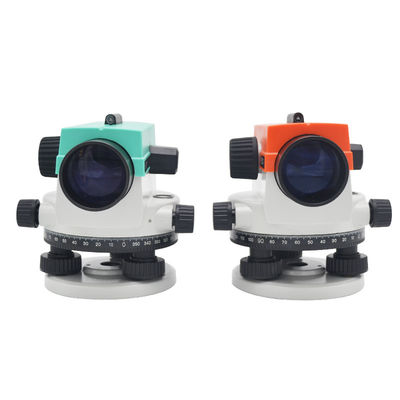

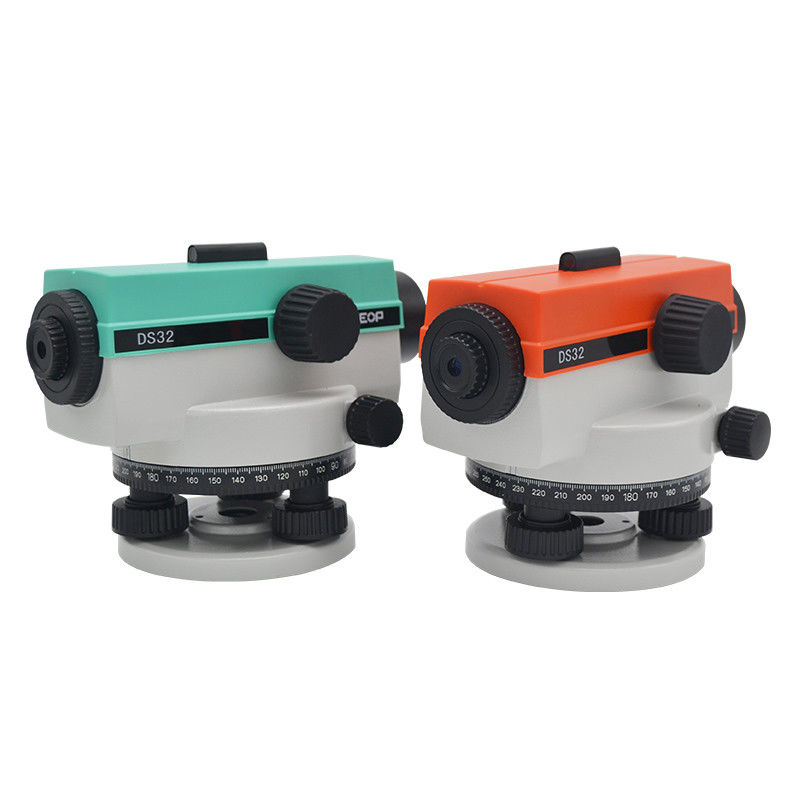

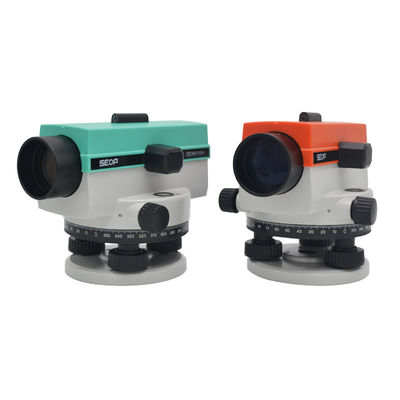

SEOP DS32 High-precision Measuring Instruments Auto Level With Accessories Two colors to choose from Technical parameter


Standard deviation of measurement height difference per kilometer round trip				≤±1.0mm
Telescopic imaging				Positive image
Telescope magnification				32
Objective aperture				40mm
Short visual range				1m
Multiplying constant				100
Compensator operating range				±15'
Leveling accuracy				±0.4”
Sensitivity of circular level				8'/2mm
Index diameter of the dial				109mm
The dial is optional				360°
Indexing interval				1°
weight				1.35kg
Operating temperature				-10℃~45℃

High Precision Measuring Digital Auto Level Instrument SEOP DS32 Customized 0

High Precision Measuring Digital Auto Level Instrument SEOP DS32 Customized 2

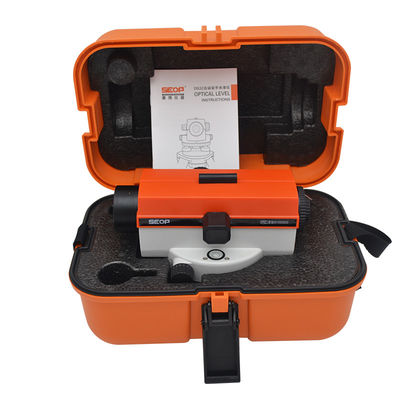

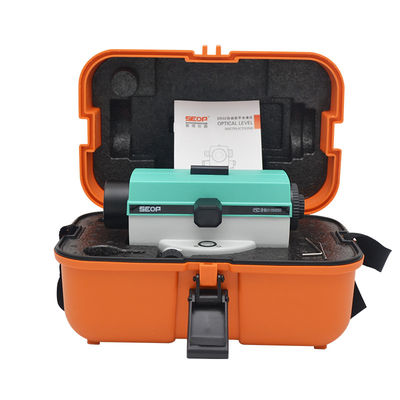

Packing List

No.	Name	Remark
1	Leveling Instrument Main Body
2	Instrument Stand
3	Correction Rod
4	Hex Wrench
5	Drying Agent
6	Plumb Line	to be peovided separately
7	User Manual
8	Certificate
9	Repair Card
10	USB Charging Cable

High Precision Measuring Digital Auto Level Instrument SEOP DS32 Customized 4

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
