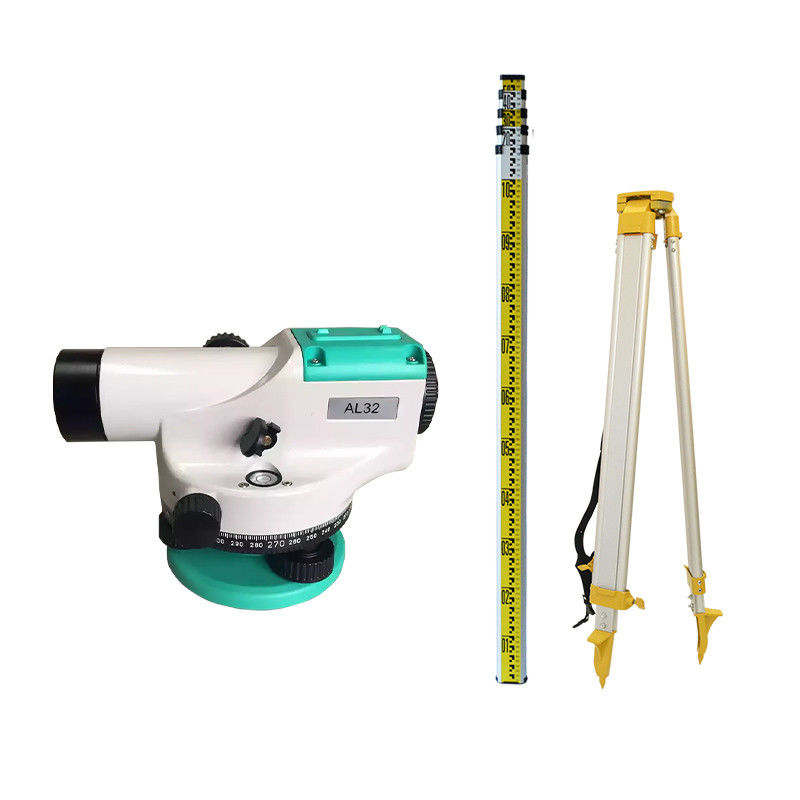

High Precision Digital Automatic Level 32X AL32 Optical Topographic Surveying Instrument

Brand Name:	SEOP
Model Number:	AL32
MOQ:	1 set
Price:	＄185
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Automatic Leveling Level SEOP AL32

Warranty:

1 Year

Magnification:

Setting Accuracy:

≤0.3"

Shortest Focusing Distance:

Field Of View At 100:

>3.2m

Multiplication Constant:

Free Diameter Of Objective:

Circular Bubble:

8'/2mm

Additive Constant:

Working Range:

≥±15'

Graduation:

360 Or 400gon

Weight:

1.6kg

Highlight:

Topographic Automatic Level

32X AL32 Automatic Level

Topographic digital and auto level

Product Description

Product Paramenters

Automatic leveling Level SEOP AL332A Technical parameter


Standard deviation of measurement height difference per kilometer round trip				≤±1.0mm
Telescopic imaging				Positive image
Telescope magnification				32
Objective aperture				30mm
Short visual range				1m
Multiplying constant				100
Compensator operating range				±15'
Leveling accuracy				±0.4”
Sensitivity of circular level				8'/2mm
Index diameter of the dial				109mm
The dial is optional				360°
Indexing interval				1°
weight				1.6kg
Operating temperature				-10℃~45℃

Core Compensation Guarantee Accuracy
The unique design of the high quality magnetic damping compensator ensures the accuracy and stability of the instrument.

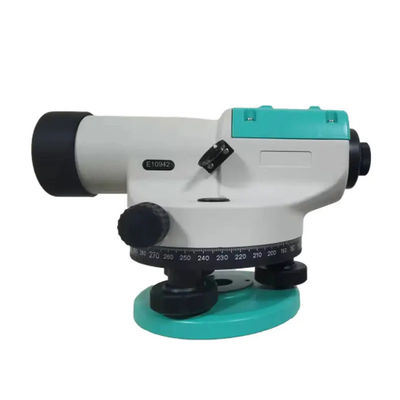

High Precision Digital Automatic Level 32X AL32 Optical Topographic Surveying Instrument 0

Automatic levelling at the touch of a button
With electric motor at the foot screw, press the red button, three-axis linkage, automatic levelling.

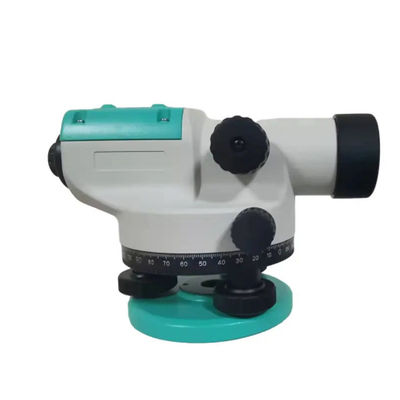

High Precision Digital Automatic Level 32X AL32 Optical Topographic Surveying Instrument 1

32x high definition lens
See farther than other levelling instruments, work in a wider range of ultra-long-distance measurements, clearer imaging.

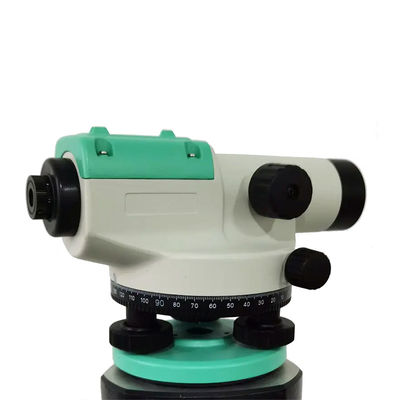

High Precision Digital Automatic Level 32X AL32 Optical Topographic Surveying Instrument 2

ABS housing, waterproof and dustproof
The body design abandons the traditional top plus sealing cover design to seal the top of the instrument with full metal, better waterproof and dustproof.

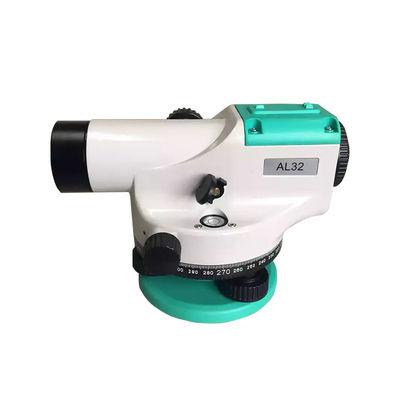

High Precision Digital Automatic Level 32X AL32 Optical Topographic Surveying Instrument 3

Packing List

No.	Name	Remark
1	Leveling Instrument Main Body
2	Instrument Stand
3	Correction Rod
4	Hex Wrench
5	Drying Agent
6	Plumb Line	(to be provided separately)
7	User Manual
8	Certificate
9	Repair Card
10	USB Charging Cable

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
