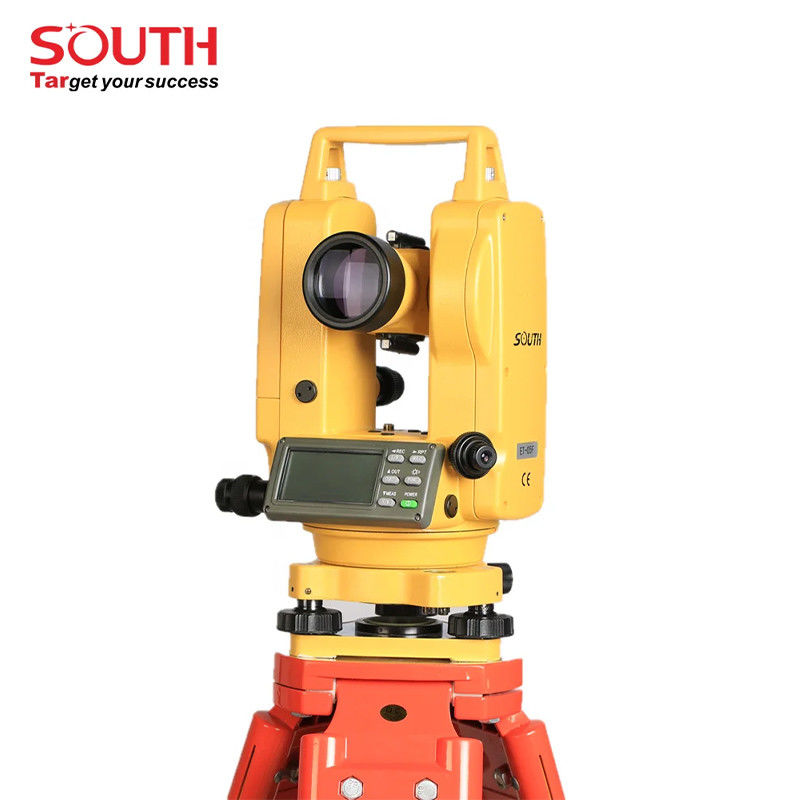

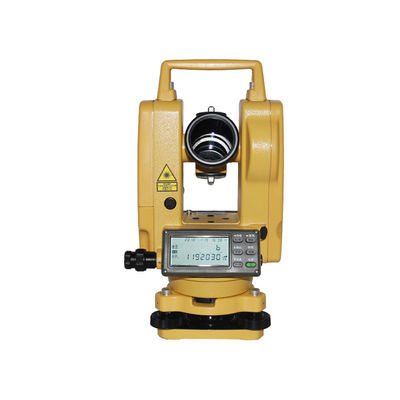

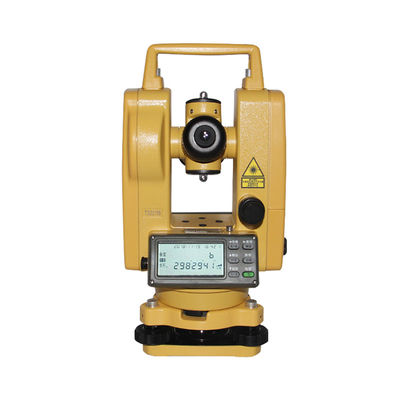

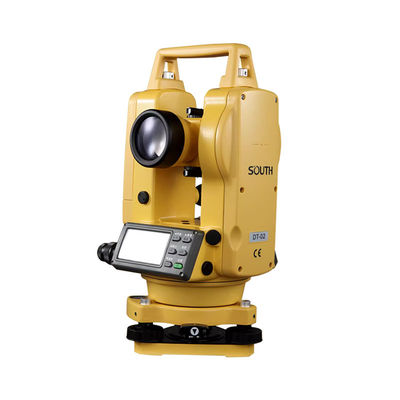

SOUTH DT-02 Microoptic Electronic Theodolites EDM Design Laser Alignment Surveying Instrument

Brand Name:	SOUTH
Model Number:	DT-02
MOQ:	1 set
Price:	＄750
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Electronic Theodolites SOUTH DT-02

Warranty:

1 Year

Image:

Erect

Magnification:

Display:

LCD Display

Effective Aperture:

Accuracy:

Field Of View:

1°30′

Minimum Focusing Distance:

Stadia Ratio:

Reading System:

Absolute Encoding

Diameter Of Circle (VHz):

Minimum Reading:

1″/ 5″ (Selectable)

Horizontal Angle:

Vertical Angle:

Highlight:

microoptic Electronic Theodolites

EDM Electronic Theodolites

Laser Alignment microoptic theodolite

Product Description

SOUTH DT-02 Electronic Digital Theodolites 2″ Accuracy Advanced EDM design laser alignment surveying instrument

Specifications

TELESCOPE
Image	Erect
Magnification	30X
Effective Aperture	45mm
Resolving Power	3″
Field of View	1°30′
Minimum Focusing Distance	1.4m
Stadia Ratio	100
Stadia Constant	0
Tube Length	157mm
ANGLE MEASUREMENT
Reading System	Absolute Encoding
Diameter of Circle (VHz)	79mm
Minimum Reading	1″/ 5″ (Selectable)
Accuracy	2 “
Horizontal Angle	Dual
Vertical Angle	Dual
DISPLAY
(LCD) Display Type	2 sides
LASER POINTER
Laser Range	be seen up to 100 meters away
MEMORY
Internal Memory	Space for 256 pairs of H. & V. angle
LEVEL SENSITIVITY
Plate Level	30″/2mm (30″ per 2mm)
Circular Level	8″/2mm (8″ per 2mm)
AUTO VERTICAL COMPENSATOR
System	Liquid-electric detection
Working Range	±3′
Accuracy	1″
OPTICAL PLUMMET TELESCOPE
Image	Erect
Magnification	3X
Focusing Range	0.5m ~∞
Field of View	5°
PHYSICAL CHARACTERISTICS
Operating Temperature	-20 C ~ +50 C
Internal Power Supply	Rechargeable Ni-H battery/ AA battery
Voltage	6 VDC
Operating Time	12 hours
Dimension	L145mm x H318mm x W179mm
Weight	5.2 kg

SOUTH DT-02 Microoptic Electronic Theodolites EDM Design Laser Alignment Surveying Instrument 0

Certifications

Company Profile

Our Service

Packing & Delivery

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
