NT-02L SOUTH Microoptic Theodolite Digital Transit 7.4V 2.6 Inch Screen

Brand Name:	SOUTH
Model Number:	NT-02L
MOQ:	1 set
Price:	＄700
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Electronic Theodolites SOUTH NT-02L

Warranty:

1 Year

Image:

Erect

Magnification:

26.5X

Effective Aperture:

Display:

LCD Display

Screen Size:

2.8 Inches

Accuracy:

±(3mm+2ppm*D)

Measure Time:

Continuous: 0.35s, Single 1.5s

Resolving Power:

Minimum Focus Range:

Highlight:

Digital microoptic theodolite

2.6 Inch microoptic theodolite

7.4V digital transit theodolite

Product Description

Cost Effective Performance 2'' Angle Accuracy NT-02L SOUTH theodolite

Telescope	Image	Erect
	Magnification	26.5x
	Effective Aperture	152mm
	Resolving Power	3″
	Field of view	1°30′
	Minimum Focus Range	1.5m
	Multiple Constant	100
	Additive Constant	0
	Stadia Accuracy	≤0.40%/L
	Tube Length	155mm
Angle Measurement	Measuring Method	Absolute Encoding
	Dia. of Encoder Disk	79mm
	Minimum Reading	1″
	Accuracy	2″
	Detection Method	Horizontal: Dual, Vertical: Dual
Compensator	Type	Single Axis
	Working Range	±3′
	Accuracy	±3″
Laser Plummet	Accuracy	±1.5mm(@1.5m)
	Spot Diameter	±2.5mm(@1.5m)
	Wave Length	635±20mm
Display Unit	Type	2.6 Inch,160*96 LCD Screen
Power Supply	Battery	7.4V Lithium Rechargeable Battery
Environment	Working Range	﹣20℃ ～﹢50℃
Dimension	Size	165 × 160 × 340 (mm)
Dimension	Weight	4.7kg

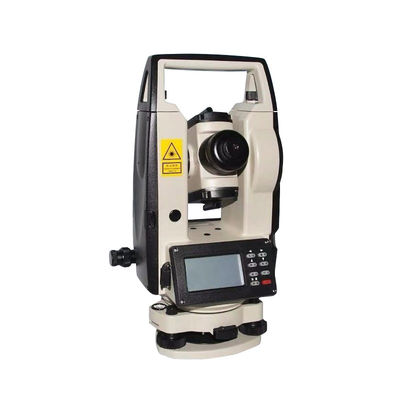

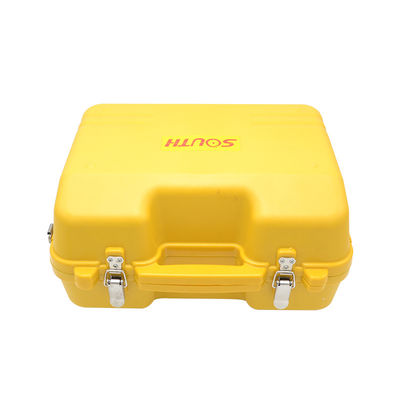

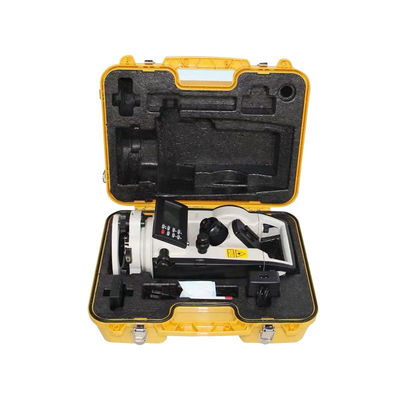

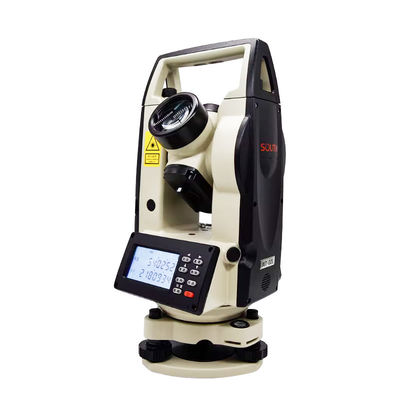

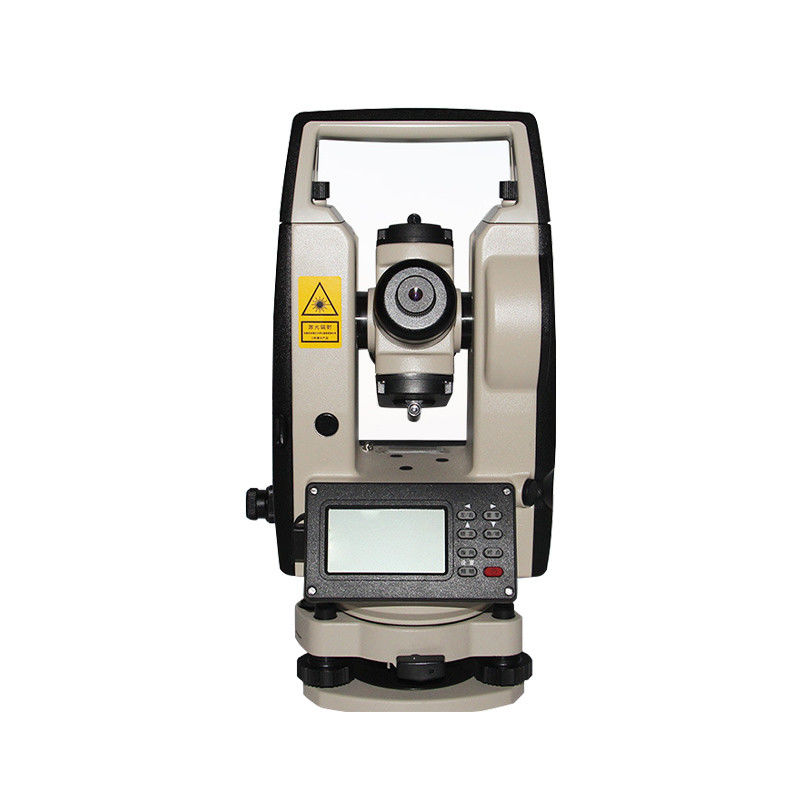

NT-02L SOUTH Microoptic Theodolite Digital Transit 7.4V 2.6 Inch Screen 0

NT-02L SOUTH Microoptic Theodolite Digital Transit 7.4V 2.6 Inch Screen 1
