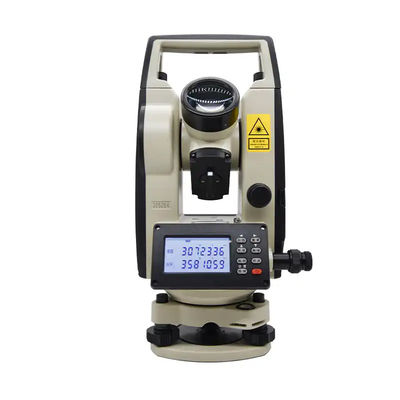

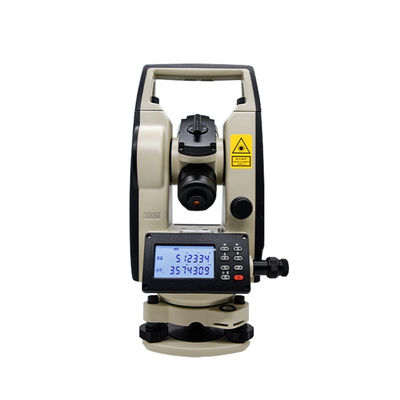

1000m Eter Visible Laser SOUTH Electronic Theodolites Machine NT-02D

Brand Name:	SOUTH
Model Number:	NT-02D
MOQ:	1 set
Price:	＄1000
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Laser Electronic Theodolites NT-02D

Warranty:

1 Year

Image:

Erect

Magnification:

26.5X

Effective Aperture:

Visual Laser:

1000m

Laser Class:

Class II

Wavelength:

635±20nm

Center Spot Diameter:

≤5cm/1000m

Display:

LCD Display

Screen Size:

2.8 Inches

Measure Time:

Continuous: 0.35s, Single 1.5s

Resolving Power:

Minimum Focus Range:

Highlight:

1000m Electronic Theodolites

SOUTH Electronic Theodolites

SOUTH theodolite machine

Product Description

Simple operation 2'' Angle Accuracy 1000m eter visible laser NT-02D SOUTH theodolite

Telescope	Image	Erect
	Magnification	26.5x
	Effective Aperture	152mm
	Resolving Power	3″
	Field of view	1°30′
	Minimum Focus Range	1.5m
	Multiple Constant	100
	Additive Constant	0
	Stadia Accuracy	≤0.40%/L
	Tube Length	155mm
Angle Measurement	Measuring Method	Absolute Encoding
	Dia. of Encoder Disk	79mm
	Minimum Reading	1″
	Accuracy	2″
	Detection Method	Horizontal: Dual, Vertical: Dual
Compensator	Type	Single Axis
	Working Range	±3′
	Accuracy	±3″
Laser Plummet	Accuracy	±1.5mm(@1.5m)
	Spot Diameter	±2.5mm(@1.5m)
	Wave Length	635±20mm
Display Unit	Type	2.6 Inch,160*96 LCD Screen
Power Supply	Battery	7.4V Lithium Rechargeable Battery
Environment	Working Range	﹣20℃ ～﹢50℃
Dimension	Size	165 × 160 × 340 (mm)
Dimension	Weight	4.7kg

Product Features

★1000m ultra-long distance visual laser.

★Support external power adapter, can be directly powered by charger.

●Information symbols at a glance.

●The keys are simple and easy to operate.

●The bead system eliminates stuck axes.

●Lithium battery and dry battery with the use of.

●Independent laser light path, high stability.

●Scientific and rationalised design of appearance and internal structure.

●Laser intensity is divided into strong and weak gears to adapt to a variety of environments.

1000m Eter Visible Laser SOUTH Electronic Theodolites Machine NT-02D 0

セオドライト NT-02D

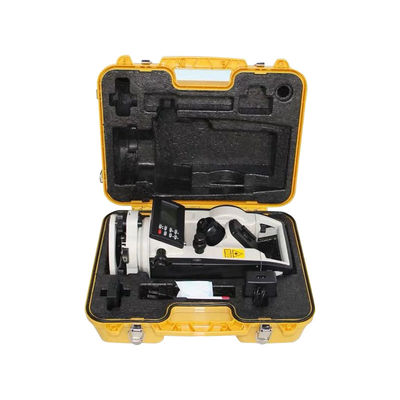

Product Accessory Information Table

No.	Name	Quantity
1	Case	1 pc
2	Main body	1 pc
3	Lithium Battery	1 pc
4	Battery Back Cover	1 pc
5	Charger	1 pc
6	Drying Agent	1 pc
7	Certificate	1 pc
8	User Guide	1 pc

Certifications

Company Profile

Our Service

Packing & Delivery

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
