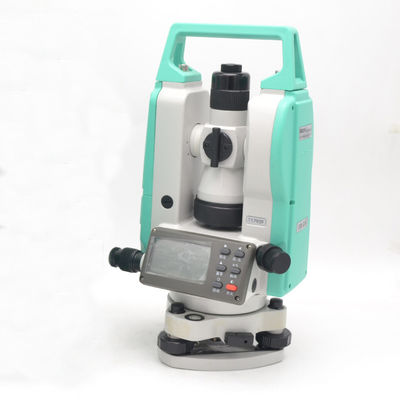

DE-2B SEOP Laser Surveying Digital Theodolite 160x96 LCD OEM

Brand Name:	SEOP
Model Number:	DE-2B
MOQ:	1 set
Price:	＄500
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Laser Electronic Theodolites DE-2B

Warranty:

1 Year

Image:

Erect

Magnification:

Effective Aperture:

Laser Class:

Class II

Wavelength:

635±20nm

Center Spot Diameter:

Display:

LCD Display

Measure Time:

Continuous: 0.35s, Single 1.5s

Resolving Power:

Minimum Focus Range:

Highlight:

SEOP Digital Theodolite

OEM Digital Theodolite

OEM surveying theodolite

Product Description

Best Selling Digital Laser Surveying Theodolite With Clear LCD Display DE-2B SEOP

HIGH ACCURACY MEASUREMENT:

Advanced optical and electronic technologies are used to ensure the accuracy of the measurement results.

Easy to operate:

User-friendly interface, simple operation, suitable for all levels of users.

Durability:

Robust design, able to adapt to a variety of harsh environments, ensuring long-term stable use.

Data storage function:

Able to store a large amount of measurement data, convenient for subsequent analysis and use.

Telescope	Image	Erect
	Magnification	30x
	Effective Aperture	45mm
	Resolving Power	3″
	Field of view	1°30′
	Minimum Focus Range	1.4m
	Multiple Constant	100
	Additive Constant	0
	Stadia Accuracy	≤0.40%/L
	Tube Length	155mm
Angle Measurement	Measuring Method	Absolute Encoding
	Dia. of Encoder Disk	79mm
	Minimum Reading	1″
	Accuracy	2″
	Detection Method	Horizontal: Dual, Vertical: Dual
Compensator	Type	Single Axis
	Working Range	±3′
	Accuracy	±3″
Laser Plummet	Accuracy	±1.5mm(@1.5m)
	Spot Diameter	±2.5mm(@1.5m)
	Wave Length	635±20mm
Display Unit	Type	2.6 Inch,160*96 LCD Screen
Power Supply	Battery	7.4V Lithium Rechargeable Battery
Environment	Working Range	﹣20℃ ～﹢50℃
Dimension	Size	165 × 160 × 340 (mm)
Dimension	Weight	4.7kg

Certifications

Company Profile

Our Service

Packing & Delivery

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
