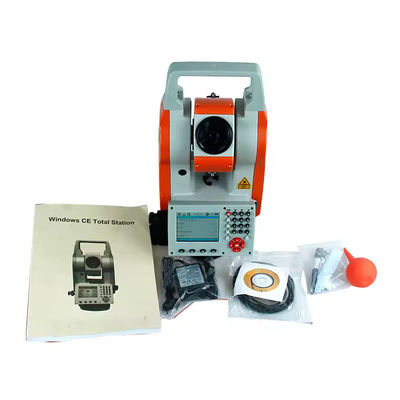

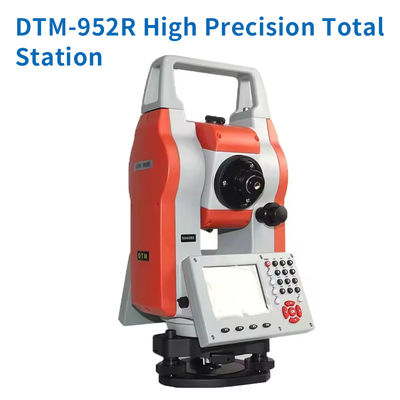

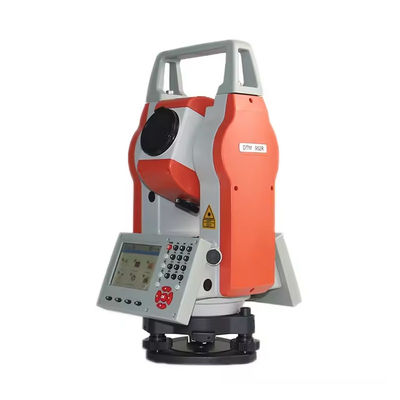

DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD
  • name
  • name
  • name
  • name
  • name

DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD

Brand Name: DAD
Model Number: DTM952R
MOQ: 1 piece
Price: $2,029.20
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Supply Ability:
1 ~ 10 day
Highlight:

Color LCD reflectorless Total Station

,

Windows CE reflectorless Total Station

Product Description


Product Paramenters

Products Description

DTM952 -- WINCE Non-Prism Laser Ranging Total Station

Distance Measurement Section

Range

Non-prism

600m

prism

Single prism

3000m

Three prism

5000m

  Accuracy

Non-prism

±(3mm+2ppm·D)

Prism

±(2mm+2ppm·D), ±(3mm+2ppm·D)

Unit

m/ft

Display

Maximum

 99999999.9999m

Minimum

0.1mm

Measuring time

 Precise model:1S, Track model:0.8S

Number of time Set

1 ~ 99

Meteorologiccorrection

 Input the value and correct automatic

Prismconstant

 Input the value and correct automatic

Angle Measurement Section

Method

 Absolute coding

  Grating diameter

79mm

  Minimum reading

1″

Detection

Horizontal

 Diametrical detection

 Vertical

 Diametrical detection

Accuracy

2″

Telescope Section

Imaging

 Positive

 Length

170mm

Effectiveaperture

48mm

 Magnification

30×

 Angle of vision

1.5°

Distinguishability

3.5″

Minimum focus distance

1.5m

Compensator

System

 Double axis photoelectric tilt sensor or

 Single axis liquid tilt sensor

 Working range

±3′

 Distinguishability

1″

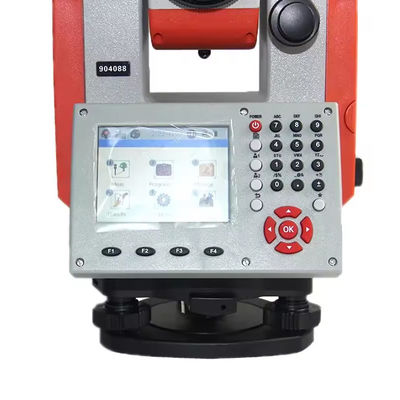

Display Section

Type

Double sides,320×240 LCD Display

Data Transmission

 Port

 Bluetooth,SD Card,USB,RS-232C

 Capacity

40,000 data at least

Others

Plummet

Optical or Laser plummet

Power

Rechargeable lithium battery,DC7.4V,3600mAh

 Continuous working time

4 hours at least

Size

174×207×383mm

Weight

 6.8Kg

 Working temperature

 -20℃ ~ 50℃



DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 0DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 1DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 2DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 3DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 4




Certifications



DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 5
DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 6

Company Profile
DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 7

FAQ


1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian


Our Service
DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 8

Packing & Delivery
DAD DTM952R Windows CE Operation System 400m Reflectorless Total Station With Color LCD 9
Certifications
